8B38-01

Name: 8B38-01
Brand: Dataforth
SKU: 02955400
Availability: InStock

Dataforth

Ціна за запитом

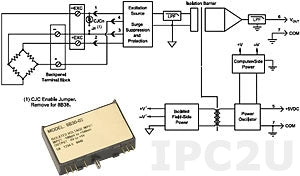

Strain Gage Input Module, Full Bridge, Input -10 mV...+10 mV, Output -5...+5V, bandwidth 8 kHz

Специфікація

Specification

Analog Input
io_tenso_bridge_type	full
Total channels of analog input	1
Voltage range	+/-10 mV
Analog Output
Channels of analog input	1
Voltage range	+/-5 V
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Built-in
Connectors
Connectors	Pin Header
System Power Input
Input Voltage DC	5...5 V
Dimensions and weight
Width	41.9 mm
Depth	10.2 mm
Height	28.1 mm
Operating Conditions
Operating Temperature	-40...85 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D
