8B47K-05

Name: 8B47K-05
Brand: Dataforth
SKU: 02819500
Availability: InStock

Dataforth

Ціна за запитом

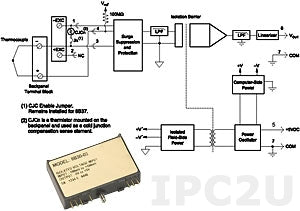

Linearized Thermocouple Input Module, Type K, Input 0...+500 °C, Output 0...+5 V

Специфікація

Specification

Analog Input
Thermocouple	K: 0...+500°C
Total channels of analog input	1
Analog Output
Channels of analog input	1
Voltage range	0...5 V
Construction
Construction Chassis	Plastic Chassis
Mounting Configuration	Built-in
Connectors
Connectors	Pin Header
System Power Input
Input Voltage DC	5...5 V
Dimensions and weight
Width	41.9 mm
Depth	10.2 mm
Height	28.1 mm
Operating Conditions
Operating Temperature	-40...85 °C
Standards and Certifications
Certifications	CE
EMI	EN 61000-6-4
EMS	IEEE C37.90.1, EN 61000-6-2
Oil And Gas	Class I Div.2 Groups A, B, C, D
