Construction |
| Construction Chassis | Plastic Chassis with Aluminum Heatsink |
| Mounting Configuration | Desktop, 19" Rackmount, Panel, Wall, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |

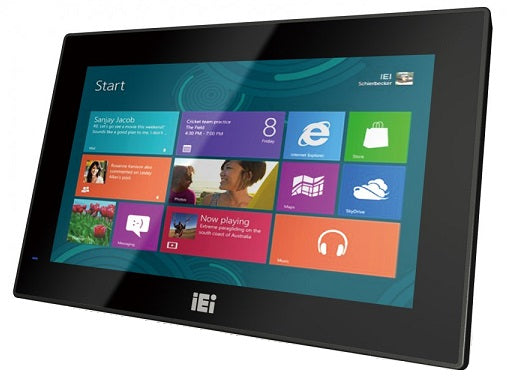

Display |
| Display Type | LCD TFT |
| Diagonal | 12.1 " |
| Maximum resolution | 1024x768 Dots |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen |
| Touch Screen Type | Capacitive |
CPU |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Memory |
| Form-factor | DDR3L |
| Default on Board Memory | 2 GB |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic |
| Graphic Controller | Integrated in CPU |
Ethernet |
| Controller Type | Realtek RTL8111E PCIe GbE |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi |
| Wi-Fi Standard | 802.11a/b/g/n/ac |
Interfaces |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Audio |
| Audio Controller | Realtek ALC892 |
Drive interfaces |
| mSATA | 1 |
LED / Controls |
| LED | Power LED |
| Controls | On/Off, 1xReset, AT/ATX Switch |

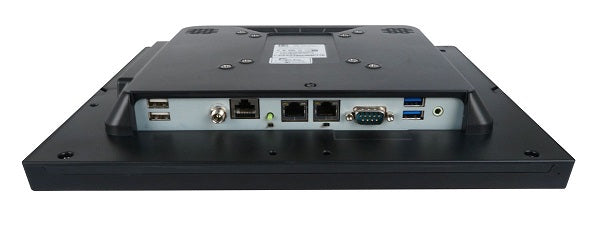

Connectors |
| Connectors | DB9, RJ45, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input |
System Power Input |
| Input Voltage DC | 9...30 V |
Power Supply |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 36 W |
Software |
| Operating System Compatibility | Windows Embedded Standard 7, Windows Embedded Standard 8 |
Dimensions and weight |
| Width | 303 mm |
| Height | 243 mm |
| Depth | 44 mm |
Operating Conditions |
| Operating Temperature | -20...50 °C |
Standards and Certifications |
| Certifications | CE, FCC |
