Construction | |
| Construction Chassis | Plastic Chassis with Aluminum Heatsink |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100, Wall VESA 75, Arm |
| Protection Level of Front Side (Panel) | IP64 |
| Type | Fanless |

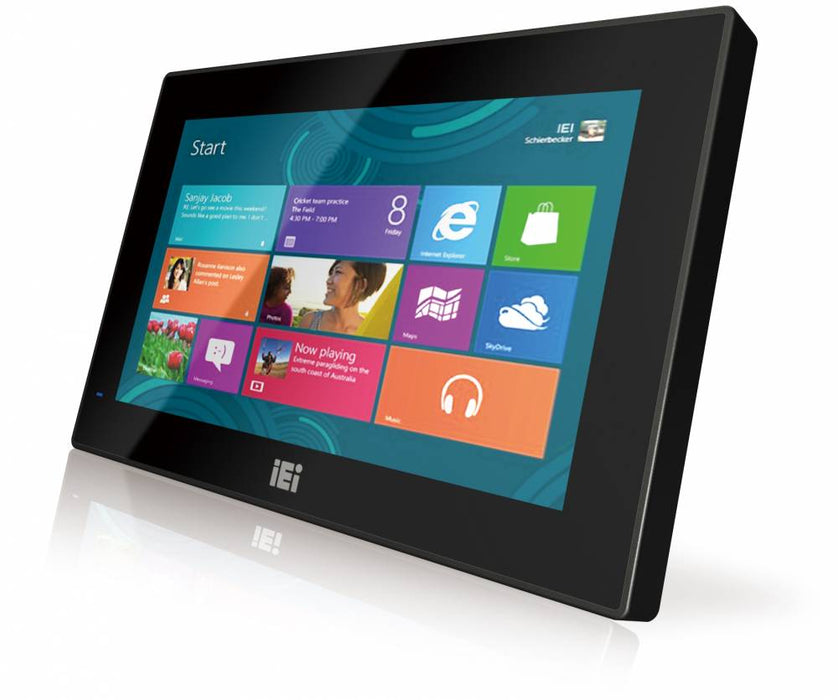

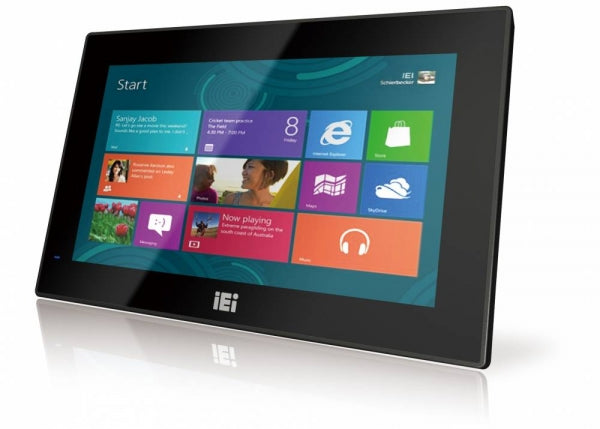

Display | |
| Display Type | LCD TFT |
| Diagonal | 7 " |
| Maximum resolution | 1024x600 Dots |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Celeron N3350 |
| Socket | CPU onboard |
| Max CPU frequency | 2.4 GHz |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps, Intel i211 |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11a/b/g/n/ac |
Interfaces | |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| M.2 | 1 |
LED / Controls | |
| Controls | On/Off |

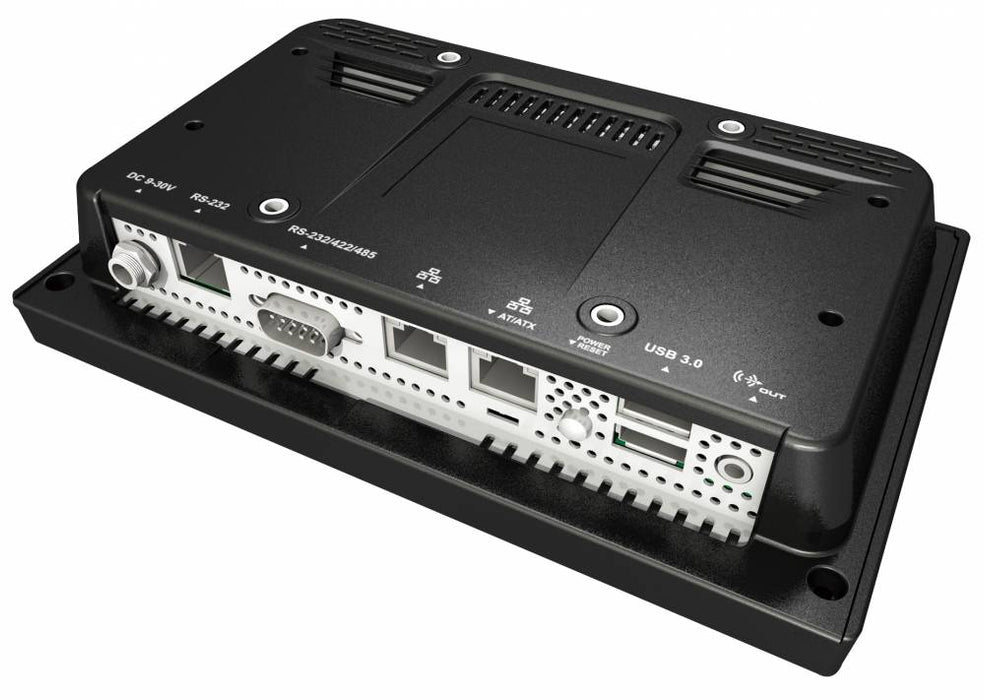

Connectors | |
| Connectors | 2xRJ45 Ethernet, 4xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 60 W |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 191 mm |
| Height | 127 mm |
| Depth | 43 mm |
Operating Conditions | |
| Operating Temperature | -20...50 °C |
Standards and Certifications | |
| Certifications | CE |
| Automotive | FCC Class A |
