Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Panel, Wall VESA 75, Arm, Wall, Desktop |
| Type | Fanless |
Display | |
| Display Type | LCD |
| Diagonal | 7 " |
| Maximum resolution | 1024x600 Dots |
| Aspect Ratio | 16:9 |
| Brightness | 450 Cd/m2 |
| Contrast Ratio | 800~1 |
| Input Interface | HDMI |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Rockchip RK3566 |
| CPU Support Type | rockchip |
| Max CPU frequency | 1.8 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 2 |
| USB 2.0 | 1 |
| USB v3.x | 1 |
Drive interfaces | |
| MicroSD | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | eMMC |
| 1st Storage Capacity | 32 GB |
Extension Slots | |
| M.2 | 1 |
| SIM Card slots | Nano SIM |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

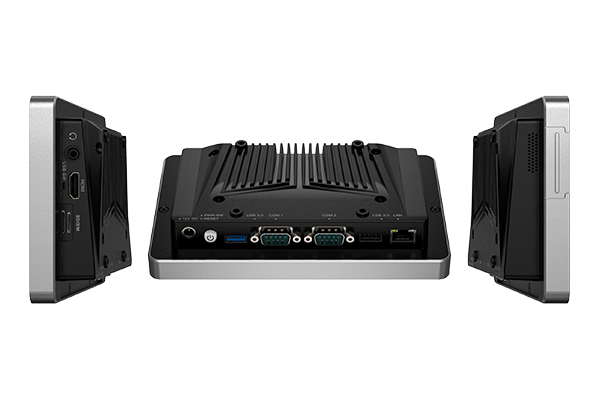

| Connectors | Line Out, Mic In, HDMI, MicroSD card slot, SIM Card Slot, 2xUSB, RJ45, 2xDB9 |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Android |
| Operating System Installed | Android |
Dimensions and weight | |
| Width | 180 mm |
| Height | 116 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
| Humidity | 10-90% |
