Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Wall, Wall VESA 100, Wall VESA 75, Arm |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 12.1 " |
| Maximum resolution | 1280x800 Dots |
| Aspect Ratio | 16:10 |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 1200~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| СPU Generation/Family | Elkhart Lake |
| Processor Installed | Intel Celeron J6412 |
| Socket | CPU onboard |
| Max CPU frequency | 2.6 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| Default on Board Memory | 8 GB |
| Maximum Memory | 8 GB |
| Assembly | Fixed on Board |
Ethernet | |
| Controller Type | Intel i225V |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax) |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 5 |
| USB 2.0 | 3 |
| USB v3.x | 2 |
Audio | |
| Audio Controller | Realtek ALC888 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 1 |
| M.2 | 1 |
LED / Controls | |
| Controls | On/Off, 1xReset, AT/ATX Switch |
Connectors | |

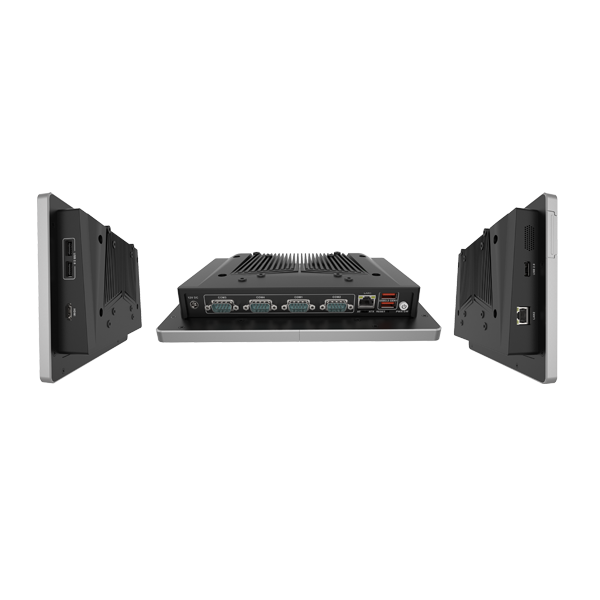

| Connectors | 2xDB9, HDMI, 2xRJ45 Ethernet, 5xUSB, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Linux OS, Windows IoT Enterprise 10 |
Dimensions and weight | |
| Width | 295.72 mm |
| Height | 197.8 mm |
| Depth | 47.5 mm |
Operating Conditions | |
| Operating Temperature | -10...50 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
