Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop |
| Protection Level of Chassis | IP40 |
| Type | Fanless |
CPU | |
| Processor Installed | ARM Cortex-A53 |
| Socket | CPU onboard |
| Max CPU frequency | 1.3 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 2 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 1 |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 2 |
| USB v3.x | 2 |
Digital Input-Output | |
| Channels of DIO | 4 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| MicroSD | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

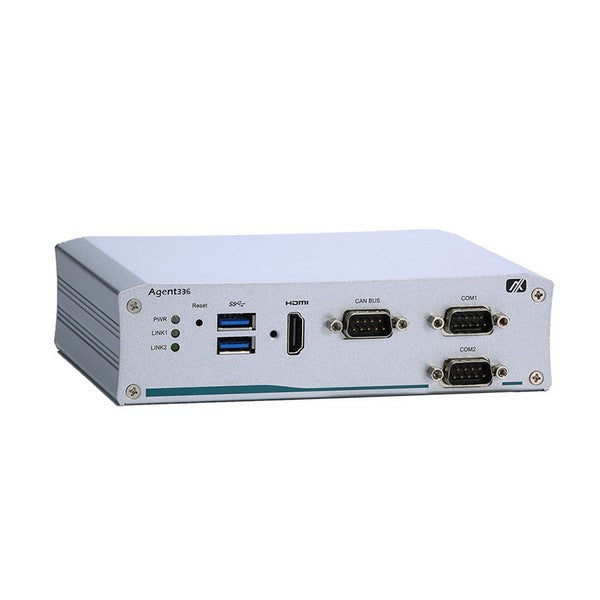

| Connectors | 3xDB9, HDMI, RJ45 Ethernet, 2xUSB, DC Input, 8-pin screw terminals (DO) |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Android, Linux OS |
Dimensions and weight | |
| Width | 163.8 mm |
| Height | 44 mm |
| Depth | 118 mm |
Operating Conditions | |
| Operating Temperature | -40...70 °C |
Standards and Certifications | |
| Certifications | CE |
| Vehicle | E-Mark |
