Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, Wall, DIN-Rail mount |
| Type | Fanless |
CPU | |
| Processor Installed | NVIDIA Jetson Xavier NX (6-core ARM v8.2 64-bit CPU, 6MB L2 + 4MB L3) |
| Socket | CPU onboard |
Chipset | |
| Chipset | SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | Soldered |
| ECC | No |
| Maximum Memory | 8 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | NVIDIA Volta GPU, 384-Core, 48 Tensor Cores |
Ethernet | |
| Controller Type | Integrated with Chipset |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 2 |
| USB v3.x | 2 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| M.2 | 2 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

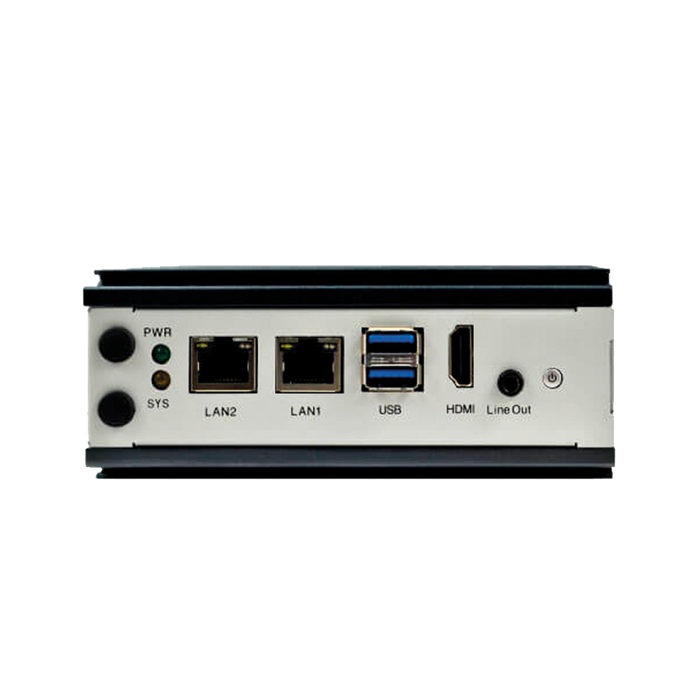

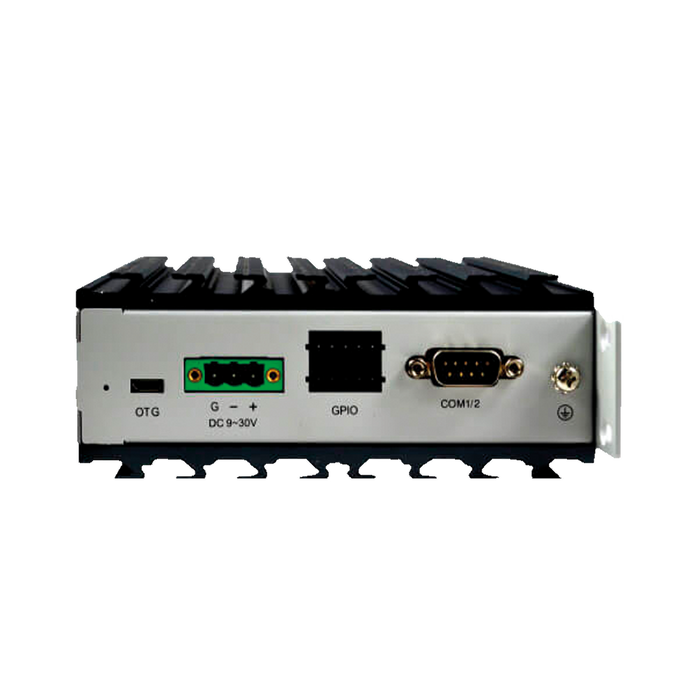

| Connectors | DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, Line Out, DC input (terminal block), GPIO (terminal block), Console Port Micro USB |
System Power Input | |
| Input Voltage DC | 9...30 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Installed | Ubuntu |
Dimensions and weight | |
| Width | 137 mm |
| Height | 52.4 mm |
| Depth | 176 mm |
Operating Conditions | |
| Operating Temperature | -10...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
