AIMB-218Z-S0A1E

Name: AIMB-218Z-S0A1E
Brand: Advantech
SKU: 09136700
Availability: InStock

Advantech

Ціна за запитом

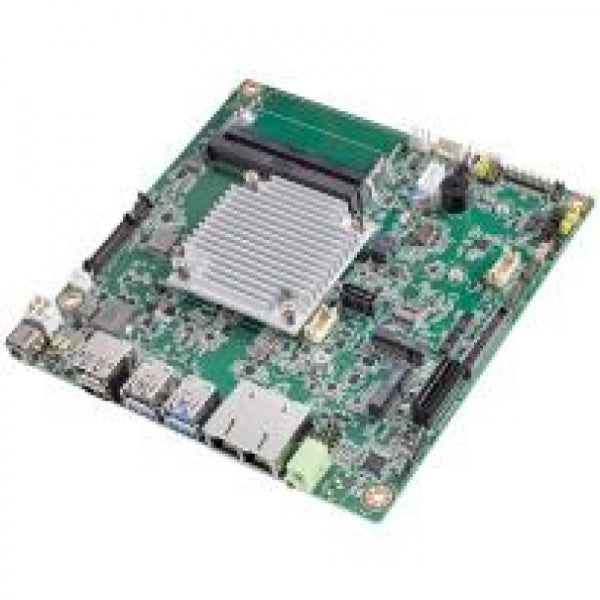

Mini-ITX SBC with Intel Atom x6413E 1.5GHz, HDMI/DP/LVDS, 2xGbE LAN, 6xCOM, 3xUSB 3.2, 5xUSB 2.0, 1xSATA 3, 2xM.2, 1xPCIe, -20...+70C

Специфікація

Specification

System Architecture
Form Factor	Mini-ITX
Construction
Type	Fanless
CPU
Socket	CPU onboard
Max CPU frequency	1.5 GHz
Memory
Form-factor	DDR4
Socket Type	2xSODIMM
Maximum Memory	32 GB
Assembly	Removable
Graphic
Graphic Controller	Integrated in CPU
Ethernet
Controller Type	Realtek 8111G
Total Ethernet	2
10/100/1000 Mbit/s	2
Interfaces
COM Total	6
RS-232	5
RS-232/422/485	1
USB Total	9
USB 2.0	5
USB v3.x	4
Drive interfaces
M.2	1
Extension Slots
Total	3
PCI Express x1	1
M.2	2
Additional Functions
Watchdog timer type	Software
Connectors
Internal Ports	SATA 3, 4-pin (12V DC CPU)
Connectors	HDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port
Dimensions and weight
Width	170 mm
Length	170 mm
Operating Conditions
Operating Temperature	-20...70 °C
