System Architecture | |

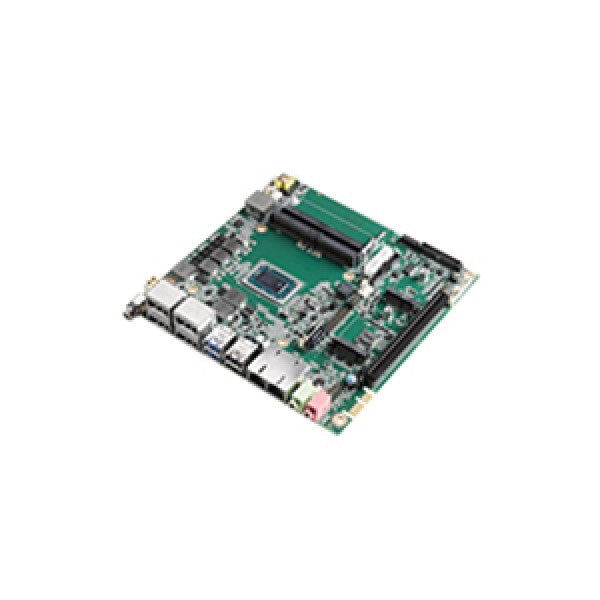

| Form Factor | Mini-ITX |
Construction | |
| Type | Fanless |
CPU | |
| Processor Installed | AMD Ryzen V1807B |
| Max CPU frequency | 3.8 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| ECC | Yes |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in Chipset |
| Interfaces | DisplayPort, LVDS |
Ethernet | |
| Controller Type | Realtek 8111G |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 4 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB 2.0 | 4 |
| USB v3.x | 2 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Total | 2 |
| PCI Express x16 | 1 |
| PCI Express x1 | 1 |
| M.2 | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Connectors | 2xRJ45 Ethernet, 4xUSB, DC Input, 4xDisplayPort |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
