Construction | |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Core i3-8145UE |
| Socket | CPU onboard |
| Max CPU frequency | 3.9 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | LVDS, HDMI |
Ethernet | |
| Controller Type | Intel i211, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 5 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 3 |
| PCI Express x1 | 1 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | COM, 2xSATA 3, 2xUSB 2.0, 2xUSB 3.0 |

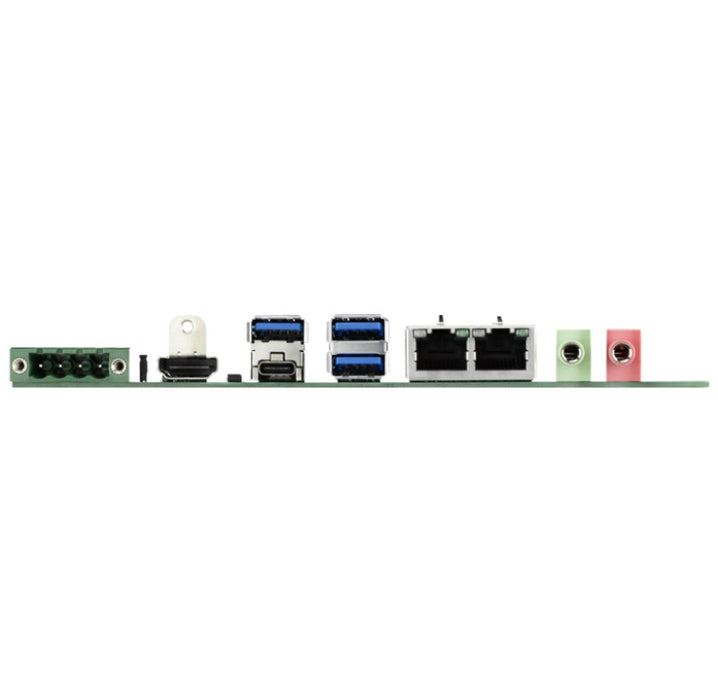

| Connectors | HDMI, 4xUSB, Mic In, Line Out, DC input (terminal block), USB type C |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
