System Architecture | |
| Form Factor | Mini-ITX |
CPU | |
| СPU Generation/Family | Skylake |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium |
| Socket | LGA1151 |
Chipset | |
| Chipset | Intel H110 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DisplayPort, HDMI, VGA |
Ethernet | |
| Controller Type | Realtek 8111G |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Digital Input-Output | |
| Channels of DIO | 8 |
Audio | |
| Audio Controller | Realtek ALC892 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Total | 1 |
| SIM Card slots | Yes |
| PCI Express x4 | 1 |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | 2xCOM, 3xSATA 3, 4x4-pin USB 2.0, 6-pin KB/MS, 4-pin ATX, 10-pin GPIO, 40-pin LVDS |

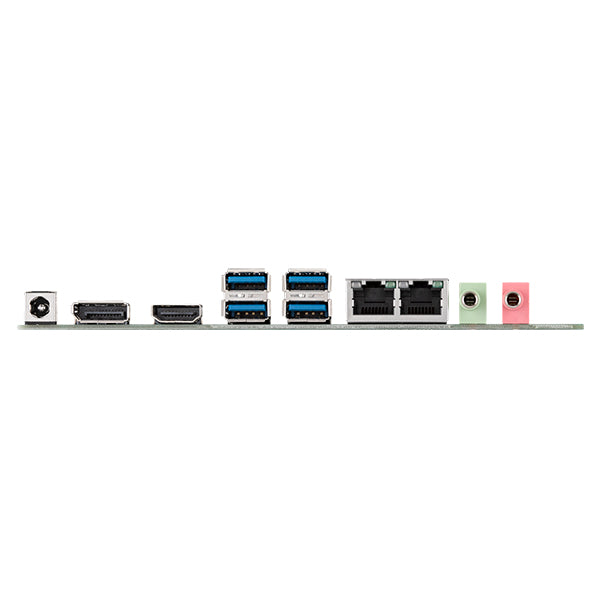

| Connectors | HDMI, 2xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC Input, Display Port |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
