System Architecture | |
| Form Factor | Mini-ITX |
CPU | |
| СPU Generation/Family | Comet Lake |
| CPU Support Type | Celeron, Core i3, Core i5, Core i7, Pentium |
| Socket | LGA1200 |
Chipset | |
| Chipset | Intel H420E |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | 2xHDMI |
Ethernet | |
| Controller Type | Intel i210 10/100/1000 Mbps, Intel i219-LM |
| Total Ethernet | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 8 |
| USB 2.0 | 2 |
| USB v3.x | 6 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| M.2 | 2 |
Connectors | |
| Internal Ports | 2xSATA 3, 2x14-pin RS-232/422/485, 2x10-pin RS-232, 2x4-pin USB 2.0, 4-pin ATX, 19-pin USB 3.0 |

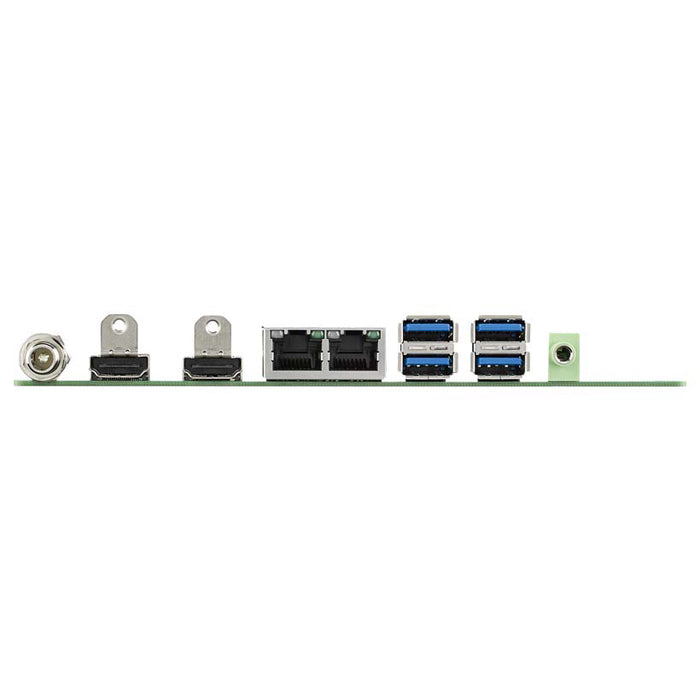

| Connectors | 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
