System Architecture | |

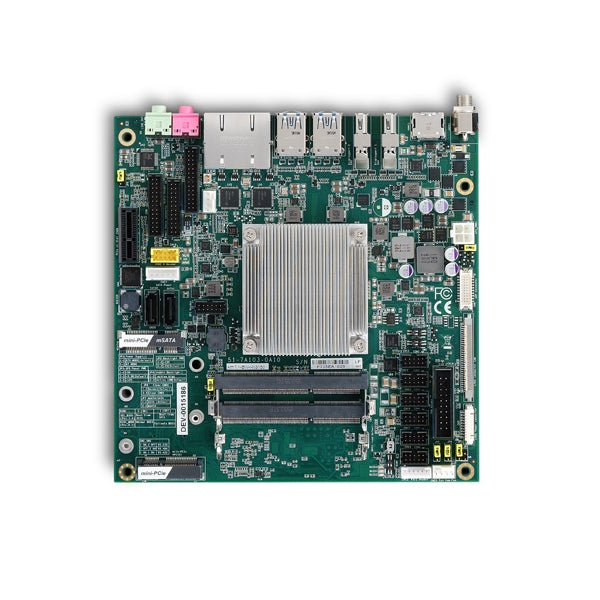

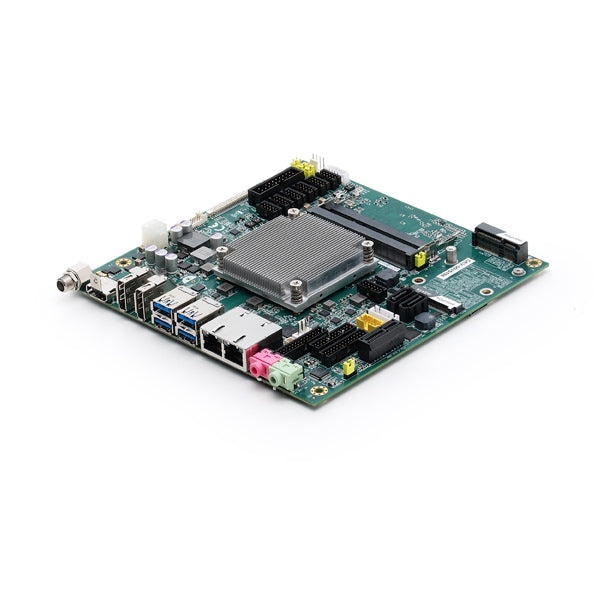

| Form Factor | Mini-ITX |
Construction | |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Atom x5-E8000 |
| Max CPU frequency | 2 GHz |
| Number of CPU | 1 |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 2xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | LVDS, HDMI, 2xDisplayPort |
Ethernet | |
| Controller Type | Intel i211-AT 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 4 |
| RS-232/422/485 | 2 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Digital Input-Output | |
| Channels of DIO | 10 |
Audio | |
| Audio Controller | Realtek ALC886 |
Drive interfaces | |
| mSATA | 1 |
| MicroSD | 1 |
Extension Slots | |
| Total | 2 |
| SIM Card slots | 1 |
| PCI Express x1 | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

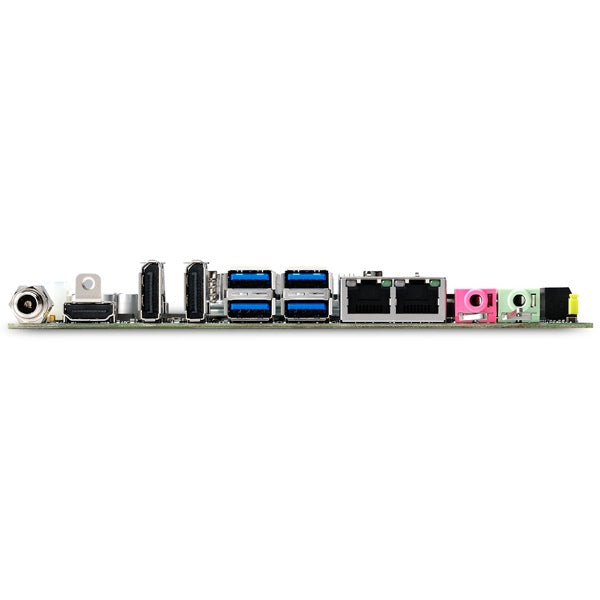

| Connectors | HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, 2xDisplayPort |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Linux OS, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 170 mm |
| Length | 170 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
