Construction | |
| Mounting Configuration | Panel, Wall, Wall VESA 100, Wall VESA 75 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD |
| Diagonal | 21.5 " |
| Brightness | 250 Cd/m2 |
| Contrast Ratio | 3000~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Celeron 3955U |
Memory | |
| Default on Board Memory | 4 GB |
| Maximum Memory | 16 GB |
Ethernet | |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 6 |
| USB 2.0 | 2 |
Audio | |
| Audio Controller | Realtek ALC892 |
Storage Cage | |
| Number Of Cage External | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 2 |
Connectors | |

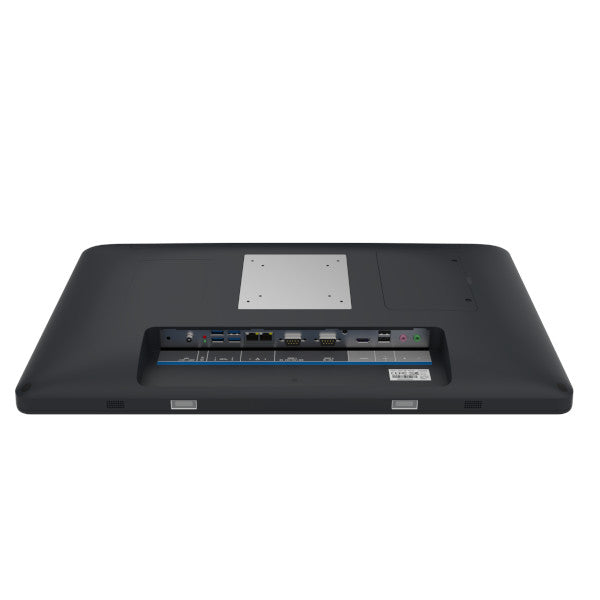

| Connectors | HDMI, 2xRJ45, 4xUSB, Mic In, Line Out, DC Input |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Linux OS |
Dimensions and weight | |
| Width | 443 mm |
| Height | 290 mm |
| Depth | 59 mm |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
