Construction | |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Celeron N3350 |
| Max CPU frequency | 2.4 GHz |
| Number of CPU | 1 |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Interfaces | 2xHDMI, VGA |
Ethernet | |
| Controller Type | Integrated with Chipset |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| USB 2.0 | 1 |
| USB v3.x | 4 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| SIM Card slots | 1 |
| Mini-PCIe/Mini Card | 2 |
Connectors | |
| Internal Ports | SATA 3, 10-pin GPIO, 5-pin SMBus |

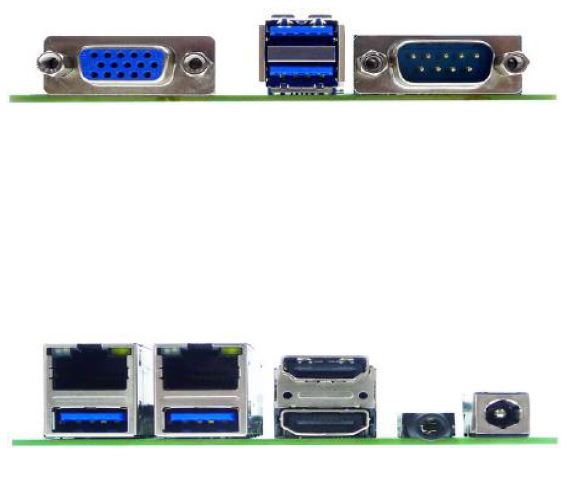

| Connectors | DB9, DB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Audio, DC Input |
Software | |
| Operating System Compatibility | Linux OS, Windows 10 |
Dimensions and weight | |
| Width | 158 mm |
| Length | 164 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
