Construction | |
| Construction Chassis | Metal Chassis |
| Mounting Configuration | Desktop, Panel, Wall, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 12.1 " |
| Maximum resolution | 1024x768 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 500 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Memory | |
| Form-factor | DDR3L |
| Default on Board Memory | 4 GB |
| Maximum Memory | 8 GB |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210-AT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 3 |
| USB 2.0 | 2 |
| USB v3.x | 1 |
Audio | |
| Audio Controller | Realtek ALC886-GR |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, 1xReset |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

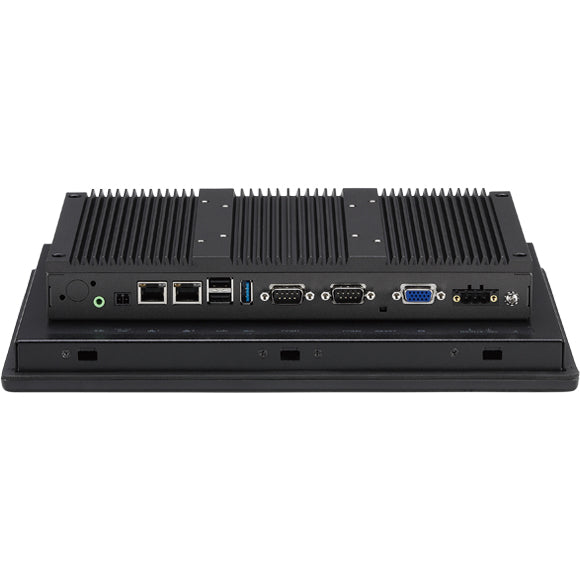

| Connectors | 2xDB9, DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45, 3xUSB, Line Out, 4xDIO, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...30 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Windows CE 7.0, Windows 10 |
Dimensions and weight | |
| Width | 317 mm |
| Height | 243 mm |
| Depth | 65.5 mm |
Operating Conditions | |
| Operating Temperature | -5...60 °C |
| Vibration | IEC 68 2-64 (w/ HDD); 1Grms @ sine. 5~500Hz. 1hr/axis (HDD Operating); 2Grms @ sine. 5~500Hz. 1hr/axis (CFast Operating); 2.2Grms @ random condition. 5~500Hz. 0.5hr/axis (Non-operating) |
| Shock | IEC 68 2-27; HDD: 20G@wall mount. half sine. 11ms |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
