Construction | |
| Construction Chassis | Metal Chassis |

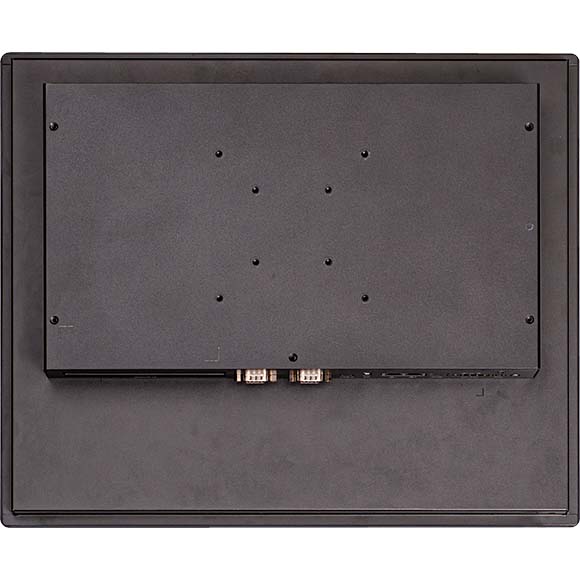

| Mounting Configuration | Panel, Wall, Wall VESA 50, Wall VESA 100 |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD TFT |
| Diagonal | 17 " |
| Maximum resolution | 1280x1024 Dots |
| Aspect Ratio | 4:3 |
| Brightness | 350 Cd/m2 |
Touch Screen | |
| Touch Screen Type | Resistive |
CPU | |
| СPU Generation/Family | Alder Lake |
| Processor Installed | Intel N97 |
| Socket | FCBGA1264 |
| Max CPU frequency | 3.6 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR5 |
| Socket Type | 1xSODIMM 262-pin |
| ECC | No |
| Default on Board Memory | 8 GB |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i226-IT |
| Total Ethernet | 2 |
| 2,5 Gbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 3 |
| USB v3.x | 3 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| M.2 Form Factor | 2242 M, 3052 B |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 1, Nano SIM |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off, 1xReset |
Connectors | |

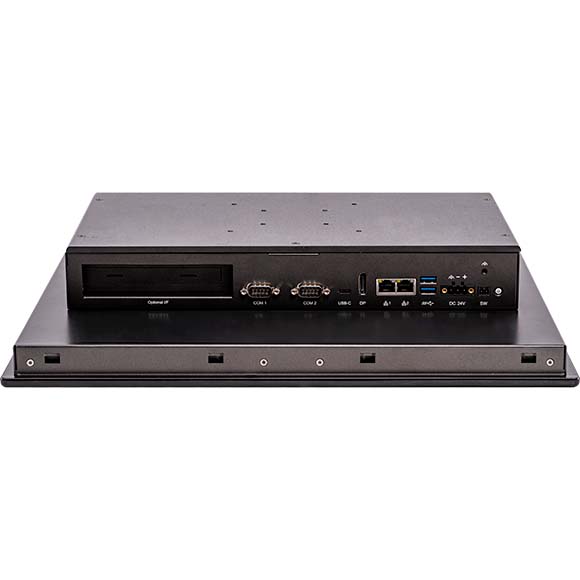

| Connectors | 2xDB9, 2xRJ45 Ethernet, Display Port, USB type C, 2xUSB, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 24...24 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Windows 11 |
Dimensions and weight | |
| Width | 410.42 mm |
| Height | 340.42 mm |
| Depth | 81.9 mm |
Operating Conditions | |
| Operating Temperature | -10...55 °C |
| Humidity | 10-90% |
| Vibration | Random: 2Grms @ sine. 5~500 Hz. IEC60068-2-64 |
| Shock | SSD: 20G @wall mount. half sine. 11ms. IEC60068-2-27 |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
