Construction | |
| Mounting Configuration | Panel |
| Protection Level of Front Side (Panel) | IP65 |
| Type | Fanless |
Display | |
| Display Type | LCD |
| Diagonal | 12.1 " |
| Aspect Ratio | 4:3 |
| Brightness | 600 Cd/m2 |
| Contrast Ratio | 700~1 |
Touch Screen | |
| Touch Screen Type | Capacitive |
CPU | |
| Processor Installed | Intel Celeron J1900 |
Memory | |
| Socket Type | 1xSODIMM 204pin |
| Maximum Memory | 8 GB |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 4 |
| USB 2.0 | 3 |
Audio | |
| Audio Controller | Realtek ALC892 |
Storage Cage | |
| Number Of Cage External | 1 |
Extension Slots | |
| Mini-PCIe/Mini Card | 1 |

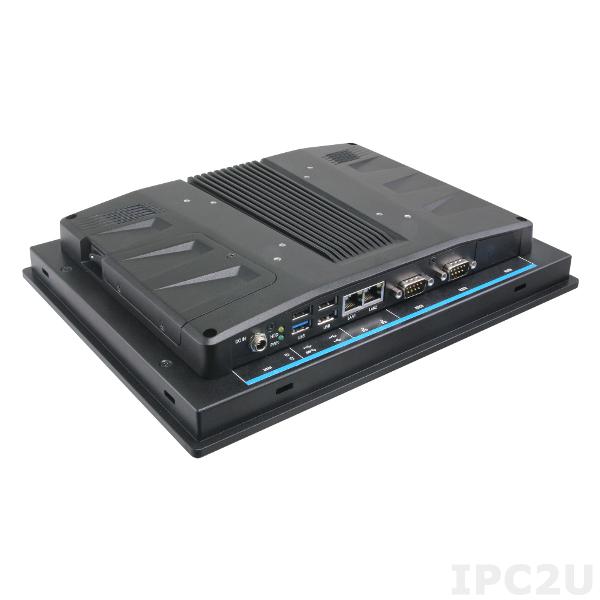

Connectors | |
| Connectors | DB9, 2xRJ45, 4xUSB, DC Input |
Dimensions and weight | |
| Width | 292.86 mm |
| Height | 225.4 mm |
| Depth | 51.5 mm |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
