Construction | |
| Construction Chassis | Metal Chassis, Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Skylake |
| Processor Installed | Intel Core i5-6300U |
| Socket | CPU onboard |
| Max CPU frequency | 2.4 GHz |
Chipset | |
| Chipset | Intel SoC |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Default on Board Memory | 4 GB |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel HD Graphics 520 |
| Interfaces | VGA, HDMI |
Ethernet | |
| Controller Type | Intel i210-IT, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 8 |
| RS-232/485 | 4 |
| RS-232/422/485 | 4 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Drive interfaces | |
| mSATA | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | Yes, 1 |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

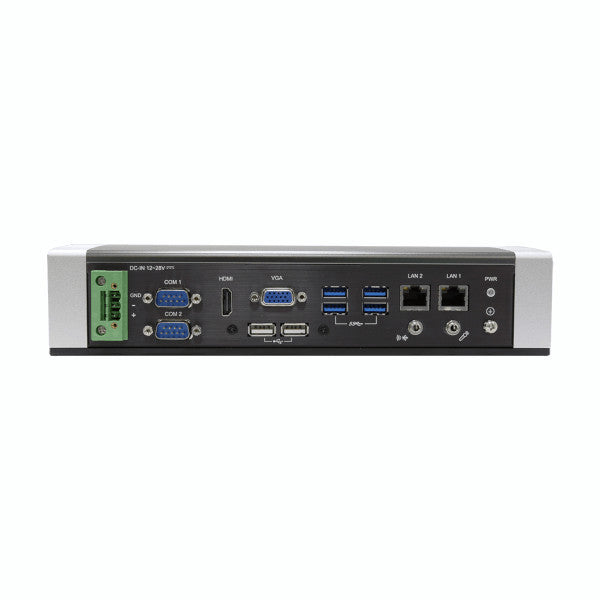

| Connectors | DB15 VGA, HDMI, 6xUSB, Mic In, Line Out, DC input (terminal block), 8xDB9, 2xRJ45 Ethernet, SIM Card Slot |
System Power Input | |
| Input Voltage DC | 12...28 V |
| Power Consumption | 30 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Ubuntu, Windows IoT Enterprise 10, Linux kernel 4.x |
Dimensions and weight | |
| Width | 265 mm |
| Height | 62 mm |
| Depth | 141 mm |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
| Humidity | 10-95% |
| Vibration | 5~500Hz 3 Grms X.Y.Z axis w/mSATA. according to IEC 68-2-64 |
| Shock | 10G peak acceleration (11 m sec. duration). operation; 30G peak acceleration (11 m sec. duration). nonoperation; According to IEC 68-2-27 |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
