Construction | |
| Construction Chassis | Metal Chassis, Aluminium Chassis |
| Mounting Configuration | Desktop, Wall, Built-in |
| Type | Fan |
CPU | |
| СPU Generation/Family | Alder Lake, Raptor Lake |
| Processor Installed | Intel Core i3, Intel Core i5, Intel Core i7 |
| Socket | LGA1700 |
Chipset | |
| Chipset | Intel H610E |
Memory | |
| Form-factor | DDR5 |
| Socket Type | 1xSODIMM |
| ECC | No |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | VGA, DisplayPort |
Ethernet | |
| Controller Type | Intel i210-AT, Intel i219-LM, Intel i226-LM |
| Total Ethernet | 3 |
| 10/100/1000 Mbit/s | 2 |
| 2,5 Gbit/s | 1 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| M.2 | 1 |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| M.2 Form Factor | 2280 M, 2242 M, 2230 E |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 1, Nano SIM |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
LED / Controls | |
| LED | Power LED, 1xHDD LED |
| Controls | On/Off |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

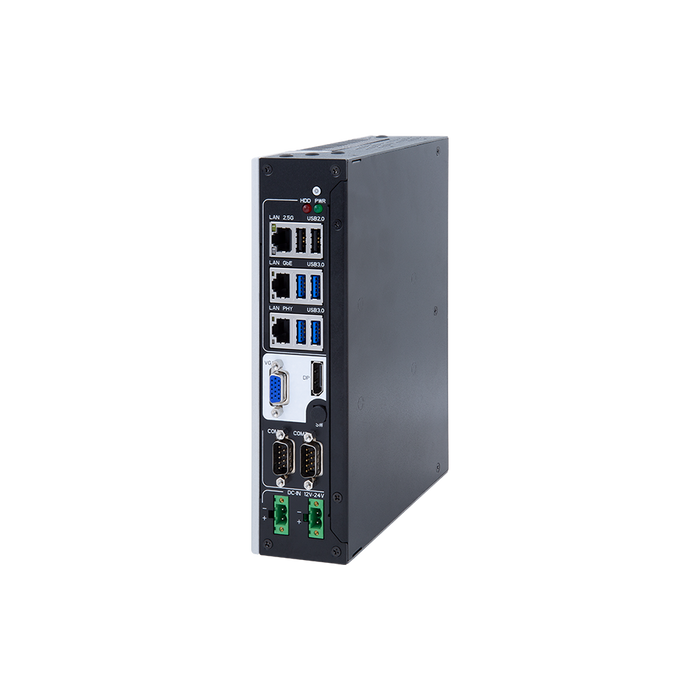

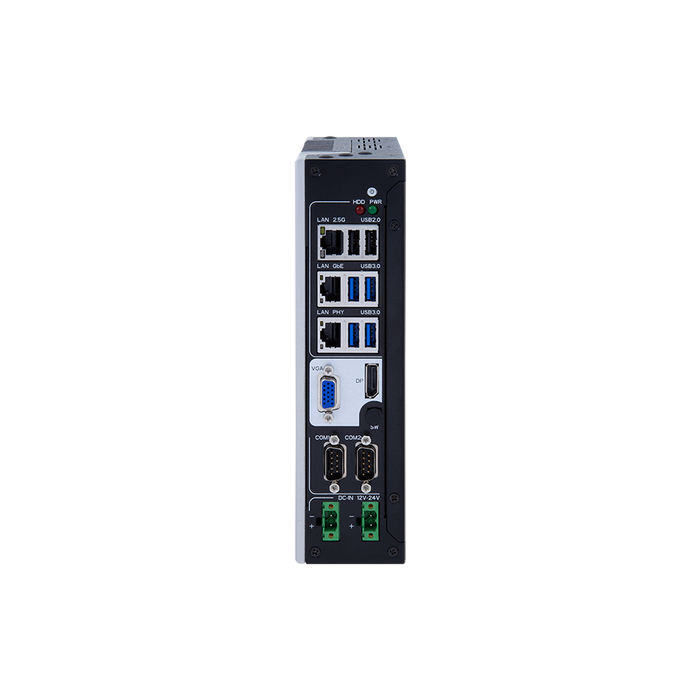

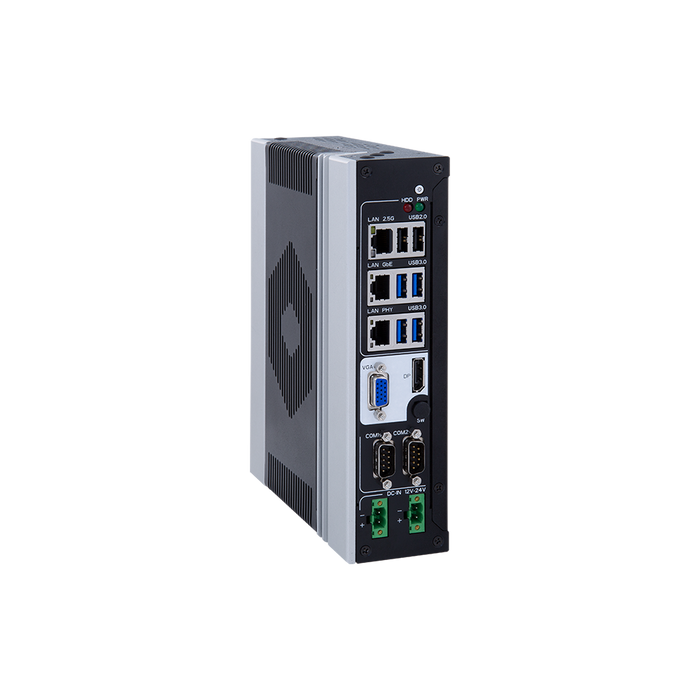

| Connectors | 2xDB9, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Display Port, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 12...24 V |
| Power Consumption | 110 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10, Windows 11, Ubuntu |
Dimensions and weight | |
| Width | 210 mm |
| Height | 55 mm |
| Depth | 164 mm |
Operating Conditions | |
| Operating Temperature | -20...50 °C |
| Humidity | 10-95% |
| Vibration | 5~500Hz 3 Grms X.Y.Z axis w/ SSD. according to IEC 68-2-64 |
| Shock | 10G peak acceleration (11 m sec. duration). operation; 30G peak acceleration (11 m sec. duration). nonoperation; According to IEC 68-2-27 |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
