Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Desktop, Built-in, DIN-Rail mount |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Bay Trail |
| Processor Installed | Intel Celeron J1900 |
| Socket | FCBGA1170 |
| Max CPU frequency | 2.42 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM 204pin |
| ECC | No |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | VGA |
Ethernet | |
| Controller Type | Intel i210-AT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| USB Total | 5 |
| USB 2.0 | 4 |
Drive interfaces | |
| mSATA | 1 |
| CFast Slots | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
LED / Controls | |
| LED | Power LED |
| Controls | On/Off |
Connectors | |

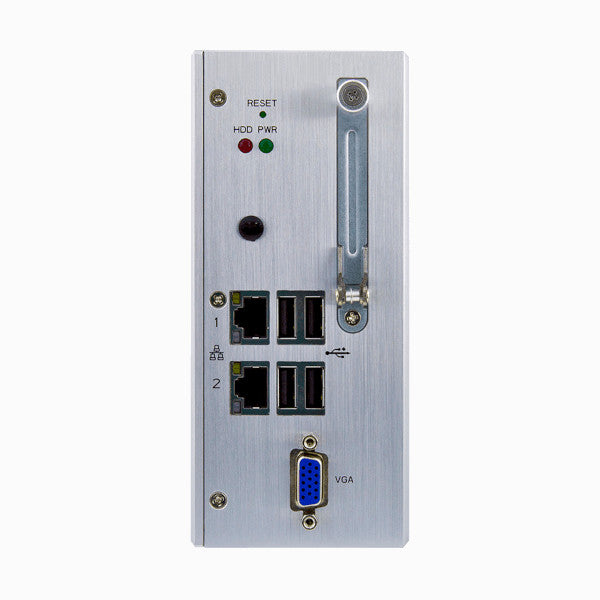

| Connectors | DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block), CFast slot |
System Power Input | |
| Input Voltage DC | 9...36 V |
| Power Consumption | 25 W |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 155 mm |
| Height | 70 mm |
| Depth | 125 mm |
Operating Conditions | |
| Operating Temperature | -30...60 °C |
| Humidity | 10-95% |
| Vibration | 3G rms/5~500Hz /random Operation |
| Shock | Operating 40G (11 ms) ; Non-operation 60G with SSD |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| Safety | UL 508 |
