Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Wall, DIN-Rail mount, Wall VESA 100, Wall VESA 75 |
CPU | |
| Processor Installed | Intel Atom E3825 |
| Socket | CPU onboard |
| Max CPU frequency | 1.33 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Controller Type | Intel i210 |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-232/422/485 | 2 |
| USB Total | 3 |
| USB 2.0 | 2 |
| USB v3.x | 1 |
Audio | |
| Audio Controller | Realtek ALC888 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| Mini-PCIe/Mini Card | 1 |
Connectors | |

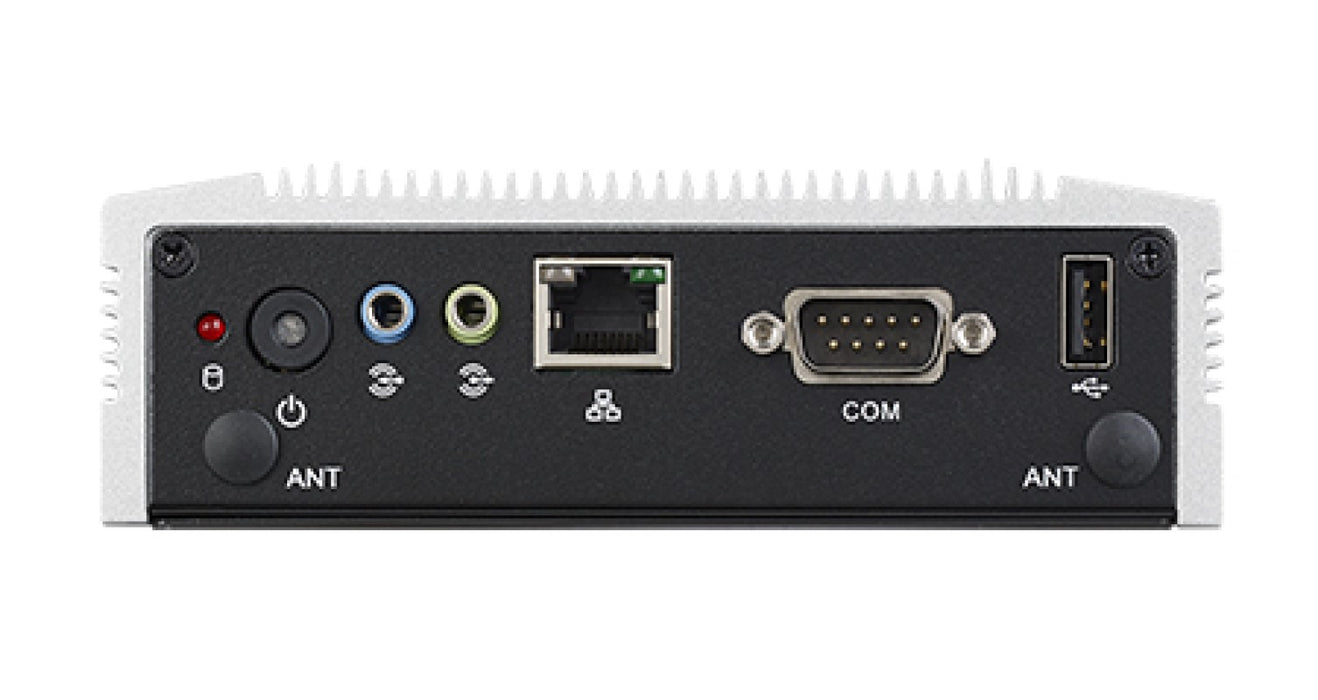

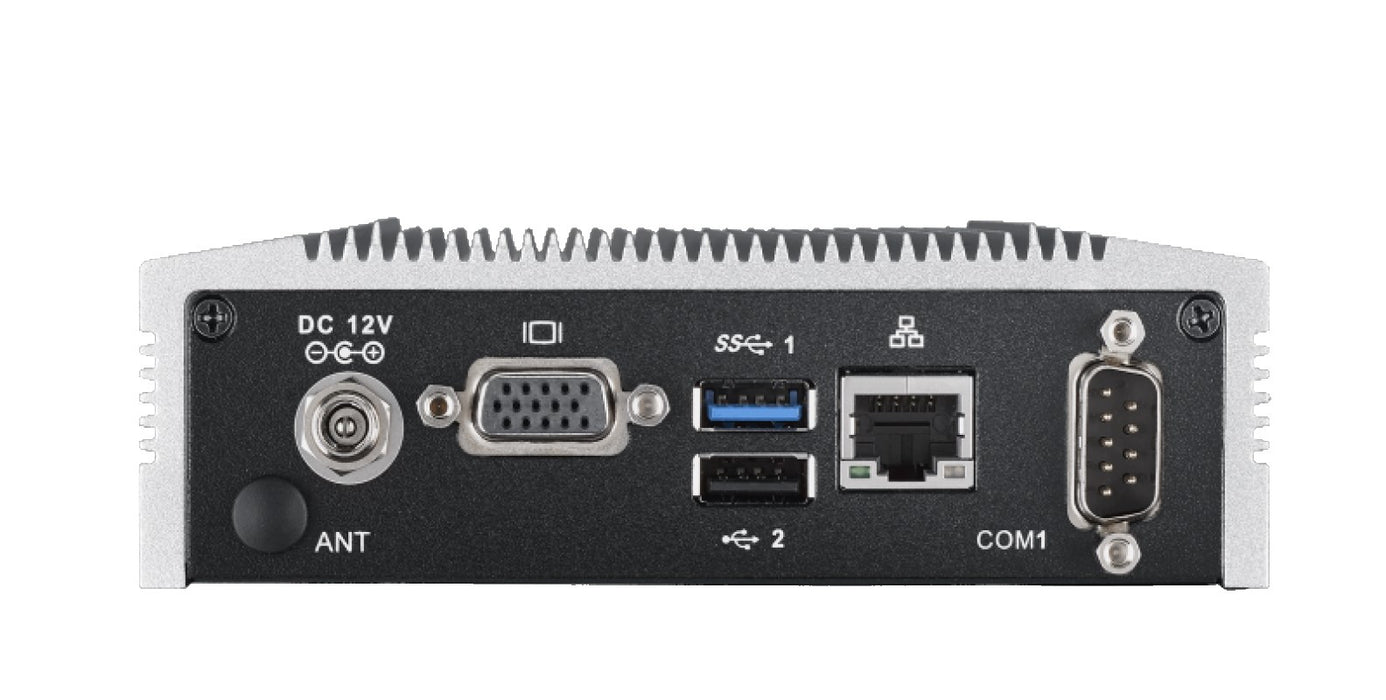

| Connectors | 2xDB9, 2xRJ45 Ethernet, 3xUSB, Line In, Line Out, DC Input |
System Power Input | |
| Input Voltage DC | 12...12 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 36 W |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Windows IoT Enterprise 10, Windows 10 |
Dimensions and weight | |
| Width | 133.8 mm |
| Height | 43.1 mm |
| Depth | 94.2 mm |
Operating Conditions | |
| Operating Temperature | -30...70 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
