Construction |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall, DIN-Rail mount, Wall VESA 75 |
| Protection Level of Chassis | IP40 |
| Type | Fanless |
CPU |
| Processor Installed | Intel Celeron J1900 |
| Max CPU frequency | 2.42 GHz |
Chipset |
| Chipset | Intel Atom SoC |
Memory |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| ECC | No |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic |
| Graphic Controller | Integrated in CPU |
Ethernet |
| Controller Type | Intel i210 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 3 |
| USB 2.0 | 2 |
| USB v3.x | 1 |
Audio |
| Audio Controller | Realtek ALC888 |
Drive interfaces |
| mSATA | 1 |
Storage Cage |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
Additional Functions |
| Watchdog timer type | Software |
Connectors |

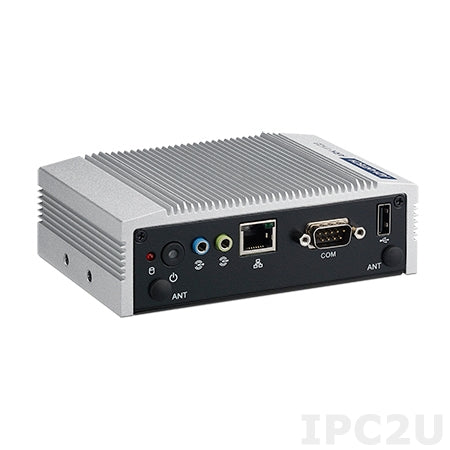

| Connectors | DB9, DB15 VGA, 2xRJ45, 3xUSB, Mic In, Line Out, DC Input |
System Power Input |
| Input Voltage DC | 12...12 V |
Power Supply |
| Type of Power Supply | External power adapter AC/DC |
Software |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux OS |
Dimensions and weight |
| Width | 133.8 mm |
| Height | 43.1 mm |
| Depth | 94.2 mm |
Operating Conditions |
| Operating Temperature | -20...60 °C |
Standards and Certifications |
| Certifications | CE, FCC Class A |
| Safety | CCC, CB, UL, BSMI |
| Vibration And Shock | IEC 60068-2-27, IEC 60068-2-64 |
