Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Wall, DIN-Rail mount |
CPU | |
| Processor Installed | Intel Atom E3940 |
| Socket | CPU onboard |
| Max CPU frequency | 1.8 GHz |
Chipset | |
| Chipset | Intel Atom SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 2xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU, Intel HD Graphics 500 |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 2 |
| RS-422/485 | 1 |
| RS-232/422/485 | 1 |
| USB Total | 5 |
| USB 2.0 | 1 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC888 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage Intenal | 1 |
Extension Slots | |
| Total | 1 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

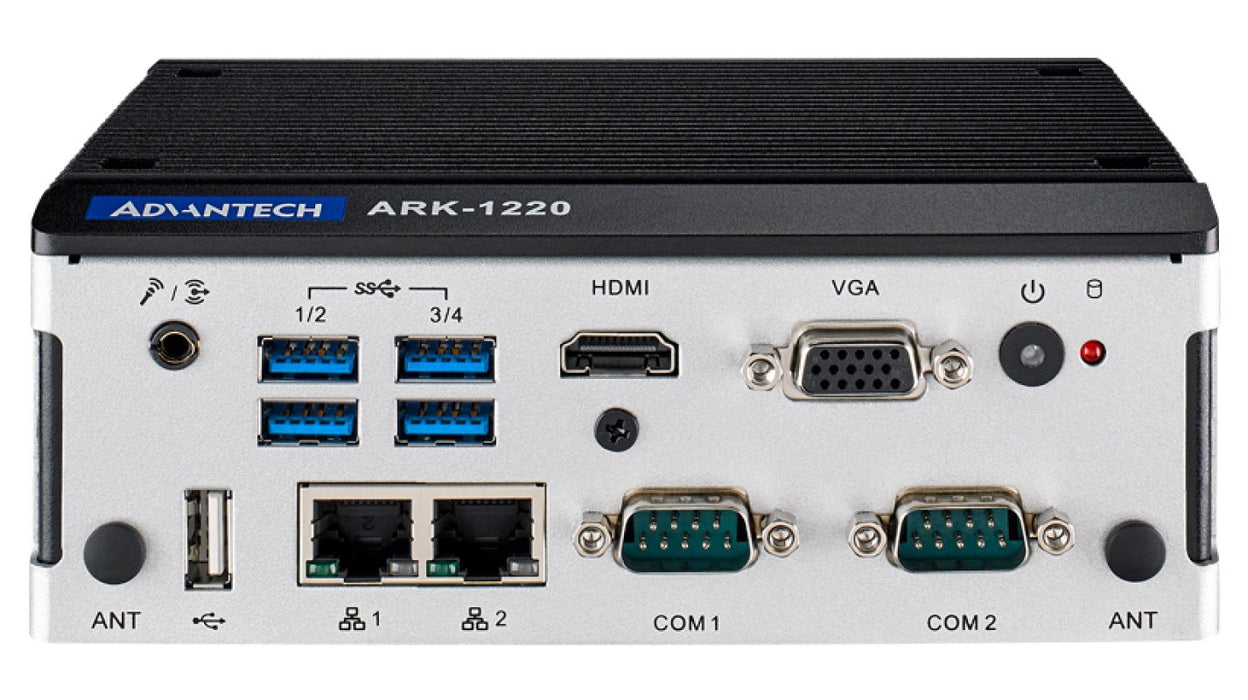

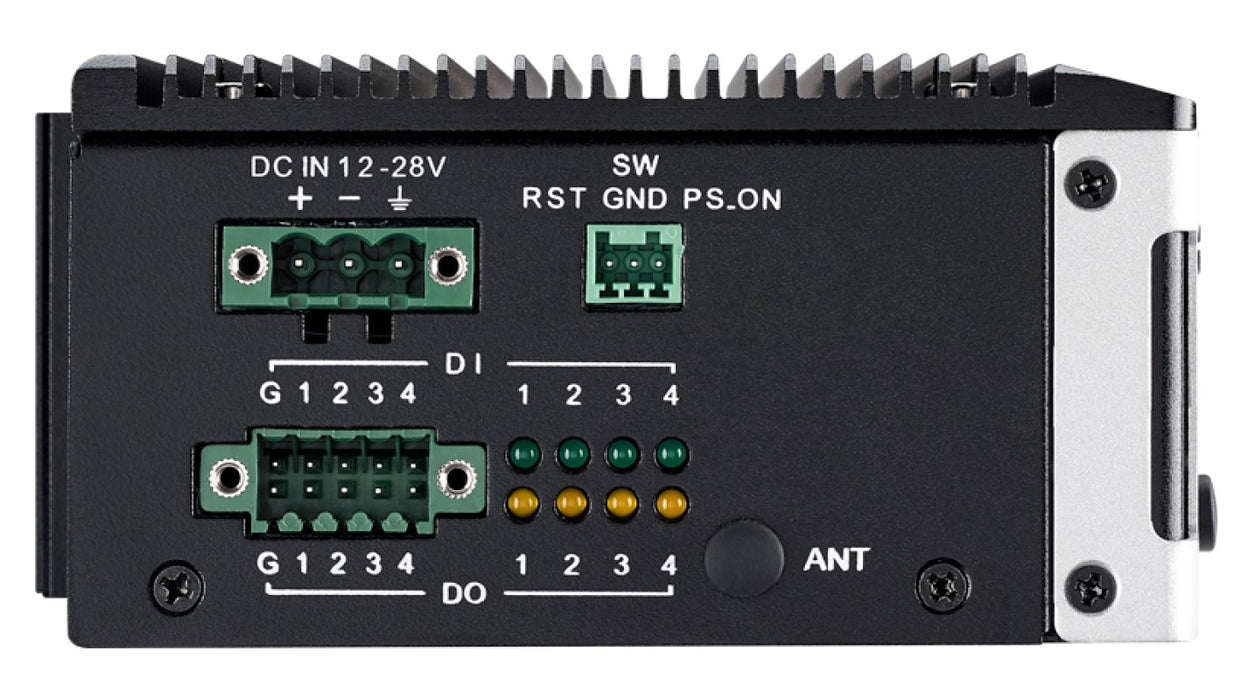

| Connectors | 2xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 5xUSB, Line In, Line Out, DC input (terminal block), DIO (terminal block) |
System Power Input | |
| Input Voltage DC | 12...28 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows IoT Enterprise 10, Windows 10 |
Dimensions and weight | |
| Width | 158 mm |
| Height | 114 mm |
| Depth | 60 mm |
Operating Conditions | |
| Operating Temperature | -30...60 °C |
| Vibration | With SSD: 3 Grms. IEC60068-2-64. random. 5~500 Hz. 1hr/axis |
| Shock | With SSD: 30 G. IEC-60068-2-27. half sine. 11 ms duration |
Standards and Certifications | |
| Certifications | CE, FCC Class B, CB |
