Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| Processor Installed | Intel Core i7-6600U |
| Socket | CPU onboard |
| Max CPU frequency | 3.4 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 1xSODIMM |
| Maximum Memory | 16 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel HD Graphics 520 |
Ethernet | |
| Controller Type | Intel i210 10/100/1000 Mbps, Intel i219-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232/422/485 | 4 |
| USB Total | 6 |
| USB 2.0 | 2 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Realtek ALC888 |
Drive interfaces | |
| mSATA | 1 |
Storage Cage | |
| Number Of Cage External | 1 |
| 2.5" Cage External | 1 |
Extension Slots | |
| Total | 2 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

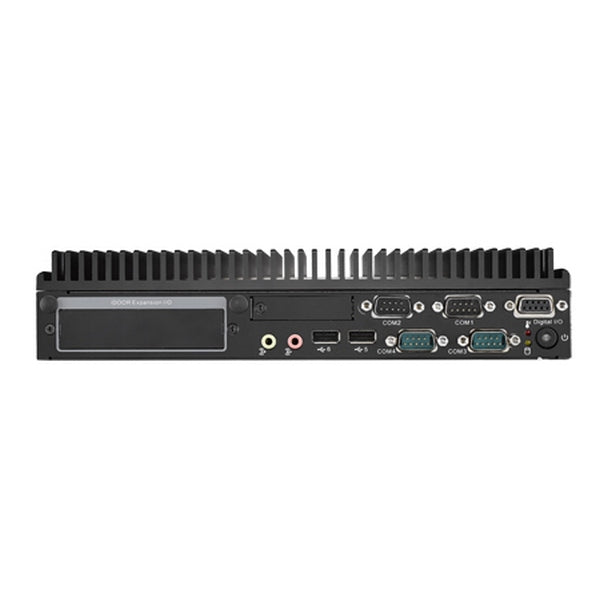

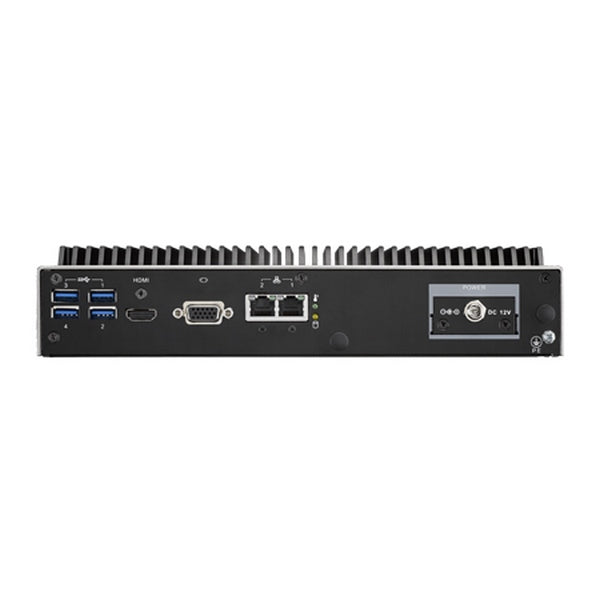

| Connectors | 4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, DB9 DIO |
System Power Input | |
| Input Voltage DC | 12...12 V |
| Power Consumption | 43.28 W |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
| Output Power | 150 W |
Software | |
| Operating System Compatibility | Windows 7, Windows Embedded Standard 7, Linux OS, Windows 8.1, Windows 10 |
Dimensions and weight | |
| Width | 260 mm |
| Height | 54 mm |
| Depth | 140.2 mm |
Operating Conditions | |
| Operating Temperature | -20...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC Class B |
| Safety | CCC, CB, UL, BSMI |
