System Architecture | |
| Form Factor | Proprietary |
CPU | |
| СPU Generation/Family | Cooper Lake |
| CPU Support Type | Xeon |
| Socket | LGA4189 |
Chipset | |
| Chipset | Intel C621A |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 16xDIMM |
| ECC | Yes |
| Maximum Memory | 1000 GB |
Graphic | |
| Graphic Controller | Aspeed AST 2500 |
| Interfaces | VGA |
Ethernet | |
| Controller Type | Intel i350 |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
| M.2 | 1 |
Extension Slots | |
| Total | 9 |
| PCI Express x16 | 4 |
| PCI Express x8 | 4 |
| M.2 | 1 |
Connectors | |
| Internal Ports | 4xSATA 3, 4-pin SMBus, 4-pin ATX, 19-pin USB 3.0, 8-pin ATX |

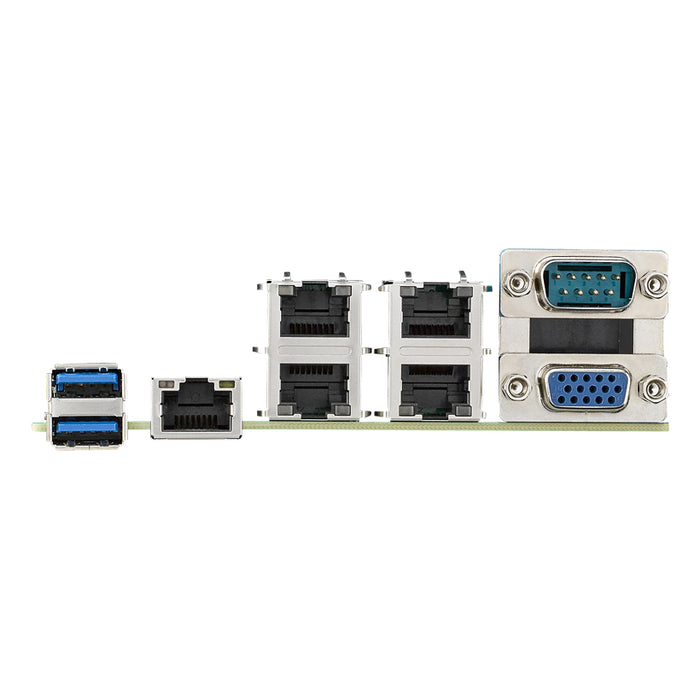

| Connectors | DB9, DB15 VGA, 4xRJ45 Ethernet, 2xUSB, RJ-45 (IPMI) |
Dimensions and weight | |
| Width | 343 mm |
| Length | 326 mm |
Operating Conditions | |
| Operating Temperature | 0...40 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
