System Architecture | |
| Form Factor | ATX |
CPU | |
| СPU Generation/Family | Skylake |
| CPU Support Type | Xeon |
| Socket | LGA1151 |
Chipset | |
| Chipset | Intel C236 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 4xDIMM |
| ECC | Yes |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | VGA, 2xDVI |
Ethernet | |
| Controller Type | Intel 82579LM 10/100/1000Mbps, Intel i210-AT |
| Total Ethernet | 4 |
| 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 6 |
| RS-232 | 6 |
| USB Total | 13 |
| USB 2.0 | 7 |
| USB v3.x | 6 |
| LPT | LPT |
Digital Input-Output | |
| Channels of DIO | 8 |
Audio | |
| Audio Controller | Realtek ALC892 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
Extension Slots | |
| Total | 7 |
| PCI Express x16 | 2 |
| PCI Express x4 | 2 |
| PCI | 3 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

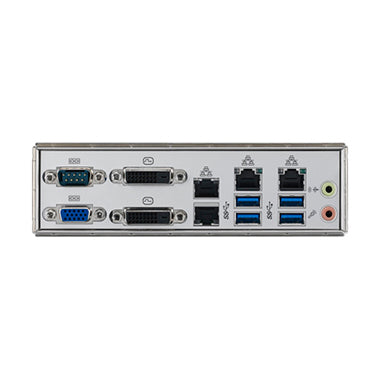

| Connectors | DB9, 2xDVI-D, DB15 VGA, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out |
Dimensions and weight | |
| Width | 244 mm |
| Length | 304.8 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
