System Architecture | |
| Form Factor | ATX |
CPU | |
| CPU Support Type | Xeon |
| Socket | LGA 2011-R3 |
| Number of CPU | 1 |
Chipset | |
| Chipset | Intel C612 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 8xDIMM |
| ECC | Yes |
| Maximum Memory | 256 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Aspeed AST2400 |
| Interfaces | VGA |
Ethernet | |
| Controller Type | Intel i210 10/100/1000 Mbps |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232 | 1 |
| USB 2.0 | 3 |
| USB v3.x | 2 |
Drive interfaces | |
| RAID Levels | 1, 5, 10 |
Extension Slots | |
| Total | 5 |
| PCI Express x16 | 2 |
| PCI Express x8 | 1 |
| PCI Express x4 | 1 |
| PCI Express x1 | 1 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

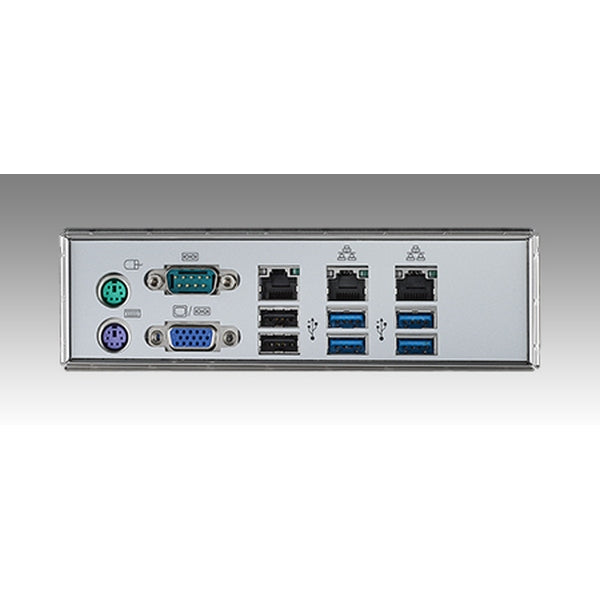

| Connectors | DB9, DB15 VGA, PS/2 Mouse, PS/2 Keyboard, 2xRJ45 Ethernet, 6xUSB |
Dimensions and weight | |
| Width | 244 mm |
| Length | 304.8 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
Standards and Certifications | |
| Certifications | CE, FCC |
