Construction | |
| Type | Fanless |
CPU | |
| Processor Installed | NVIDIA Jetson AGX Orin |
| Max CPU frequency | 2 GHz |
Memory | |
| Form-factor | DDR5 |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 16 GB |
| Maximum Memory | 16 GB |
| Assembly | Fixed on Board |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 5 |
| 10/100/1000 Mbit/s | 1 |
| PoE+ 10/100/1000 Mbit/s | 4 |
Interfaces | |
| COM Total | 2 |
| RS-232 | 2 |
| USB Total | 3 |
| USB 2.0 | 1 |
| USB v3.x | 2 |
Digital Input-Output | |
| Channels of DIO | 8 |
Industrial Interfaces | |
| CAN Port | 1 |
Drive interfaces | |
| M.2 | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | M.2 |
| Drive Interface | PCIe x4 |
| 1st Storage Capacity | 128 GB |
Extension Slots | |
| Total | 3 |
| M.2 | 2 |
| M.2 Form Factor | 2280 M, 3042 B, 3052 B |
| Mini-PCIe/Mini Card | 1 |
Additional Functions | |
| GPS | GPS, GLONASS |
Connectors | |

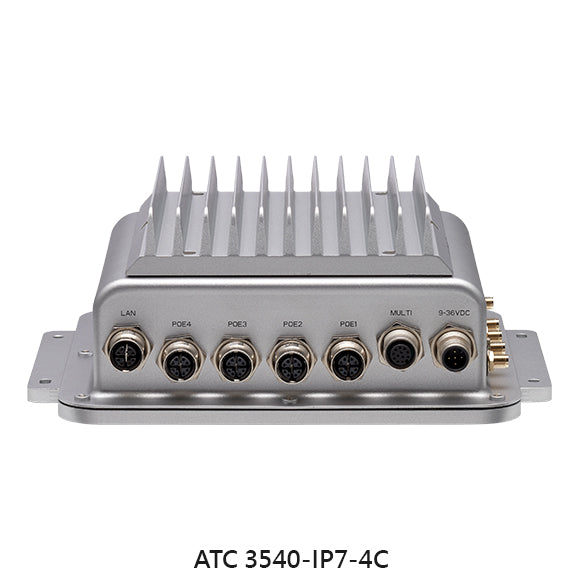

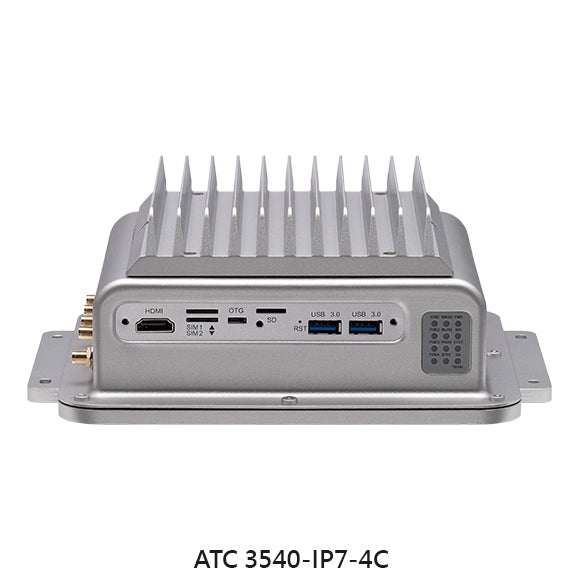

| Connectors | HDMI, 2xUSB, 2xMicro-SIM card slot, 5-pin M12 DC, Console Port Micro USB, 4xM12 PoE, M12 LAN |
System Power Input | |
| Input Voltage DC | 9...36 V |
Software | |
| Operating System Compatibility | Ubuntu 20.04 |
Dimensions and weight | |
| Width | 213 mm |
| Height | 82.8 mm |
| Depth | 167 mm |
Operating Conditions | |
| Operating Temperature | -30...70 °C |
| Humidity | 10-95% |
| Vibration | MIL-STD-810G. 514.6C. Procedure 3. Category 4 - IEC 60068-2-64: 2.0g@5~500 Hz - MIL-STD-810G. 514.6E. Procedure 1. Category 24. 7.7g approx |
| Shock | Operating: MIL-STD-810G. Method 516.6. Procedure I. functional shock=20g - Non-operating: MIL-STD-810G. Method 516.6. Procedure V. crash hazard shock test=75g |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock |
| Automotive | e13 Mark |
| Vibration And Shock | IEC 60068-2-64 |
