Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Desktop, Wall |
| Type | Fanless |
CPU | |
| Processor Installed | NVIDIA Jetson AGX Orin |
| Socket | CPU onboard |
| Max CPU frequency | 2.2 GHz |
Memory | |
| Form-factor | DDR5 |
| Socket Type | Soldered |
| ECC | No |
| Default on Board Memory | 32 GB |
| Maximum Memory | 64 GB |
| Assembly | Fixed on Board |
Graphic | |
| Graphic Controller | Integrated in CPU |
Ethernet | |
| Total Ethernet | 6 |
| 10 Gbit/s | 1 |
| PoE+ 10/100/1000 Mbit/s | 6 |
Wi-Fi | |
| Wi-Fi Standard | Yes |
Interfaces | |
| COM Total | 2 |
| RS-232 | 2 |
| USB Total | 3 |
| USB 2.0 | 1 |
| USB v3.x | 2 |
Digital Input-Output | |
| Channels of DIO | 8 |
Industrial Interfaces | |
| CAN Port | 2 |
Drive interfaces | |
| M.2 | 1 |
| SD Slots | 1 |
Installed drive | |
| Drive Type | SSD |
| Storage Form-Factor | eMMC |
| 1st Storage Capacity | 64 GB |
Extension Slots | |
| Total | 4 |
| M.2 | 3 |
| M.2 Form Factor | 2280 M, 3042 B, 3052 B |
| Mini-PCIe/Mini Card | 1 |
| SIM Card slots | Yes, 2, Nano SIM |
Antenna characteristics | |
| Cellular interfaces | 4G (Optional) |
Additional Functions | |
| GPS | GPS, GLONASS |
Connectors | |

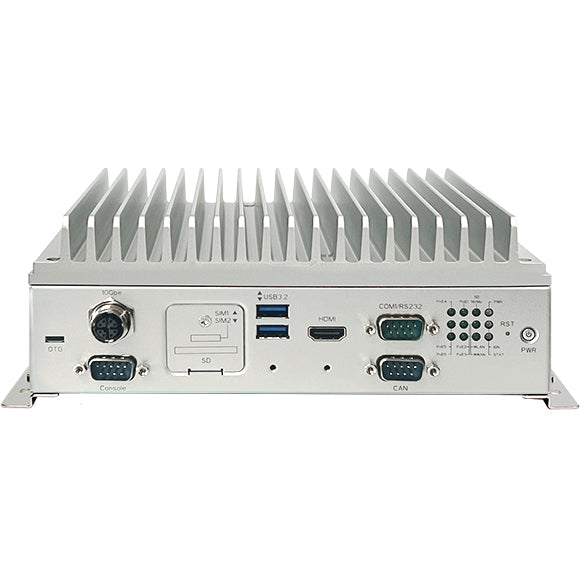

| Connectors | 2xDB9, HDMI, 6xRJ45 Ethernet, 2xUSB, DC input (terminal block), 2xDB9 CAN, 1xMicro USB, SD card slot, 2xSIM Card Slot, Console Port RS-232 (DB9M) |
System Power Input | |
| Input Voltage DC | 24...24 V |
Power Supply | |
| Type of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Linux OS, Ubuntu 20.04 |
Dimensions and weight | |
| Width | 234 mm |
| Height | 172.8 mm |
| Depth | 80.5 mm |
Operating Conditions | |
| Operating Temperature | -20...70 °C |
| Humidity | 10-95% |
| Vibration | Vibration in operating: MIL-STD-810H. 514.8C Procedure 6. Category 4; IEC 60068-2-64: 2.0g@5~500 Hz. Vibration in storage: MIL-STD-810G. 514.6E Procedure 1. Category 24. 7.7g |
| Shock | MIL-STD-810G. 516.6 Procedure I. trucks and semi-trailers=40g; Crash hazard: Procedure V. ground equipment=75g |
Standards and Certifications | |
| Certifications | CE, FCC Class A |
| MIL-STD-810 | MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration |
| Rolling Stock | EN 50155 |
| Vibration And Shock | IEC 60068-2-64 |
