Construction | |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Skylake |
| Processor Installed | Intel Core i7-6820EQ |
| Max CPU frequency | 3.5 GHz |
Chipset | |
| Chipset | Intel QM170 PCH |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Default on Board Memory | 16 GB |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Intel HD 530 graphics, Nvidia Quadro P1000 MXM |
Ethernet | |
| Total Ethernet | 10 |
| 10/100/1000 Mbit/s | 6 |
Interfaces | |
| COM Total | 4 |
| RS-232/422/485 | 4 |
| USB Total | 4 |
| USB v3.x | 4 |
Drive interfaces | |
| CFast Slots | 1 |
Storage Cage | |
| 2.5" Cage External | 2 |
Extension Slots | |
| Total | 3 |
| M.2 | 1 |
| Mini-PCIe/Mini Card | 2 |
| SIM Card slots | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |

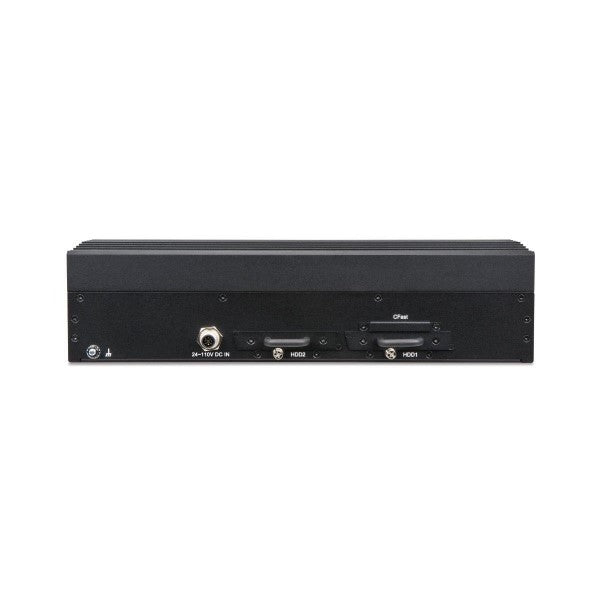

| Connectors | 4xDB9, DVI-I, PS/2 Keyboard/Mouse, 2xRJ45, 4xUSB, Mic In, Line Out, 8xM12, M12 DC-in, 4xDisplayPort |
System Power Input | |
| Input Voltage DC | 24...110 V |
| Power Consumption | 149 W |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Ubuntu, Windows 10 |
Dimensions and weight | |
| Width | 360 mm |
| Height | 88.8 mm |
| Depth | 225.1 mm |
Operating Conditions | |
| Operating Temperature | -25...70 °C |
| Vibration | EN50155 standard. method EN61373: 2010. Category 1 Class B |
| Shock | EN50155 standard. method EN61373: 2010. Category 1 Class A & Class B |
