Construction |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Industrial Interfaces |

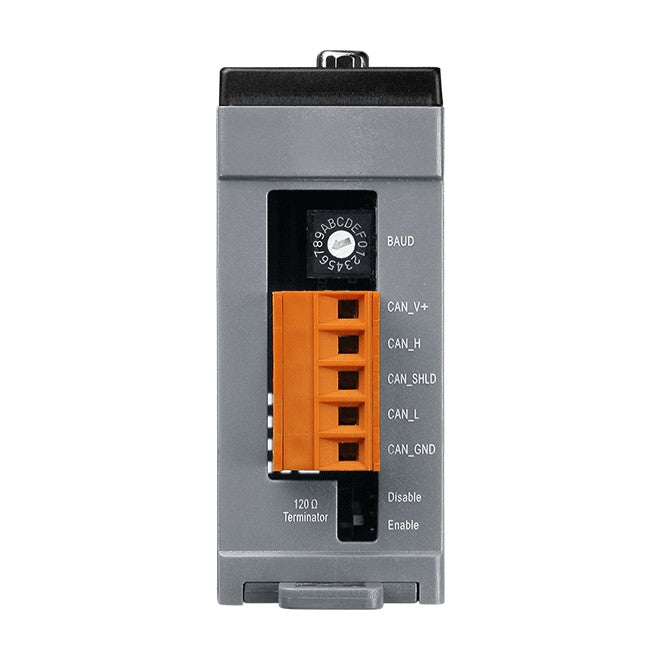

| CAN Port | 1 |
Supported Protocols |
| Industrial Protocols | CANopen slave |
Analog Input |
| Total channels of analog input | 10 |
| Number of Bits | 16 Bit |
| Voltage range | +/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V |
| Current range | -20...+20 mA |
| Sampling rate | 10 Hz |
| Differential channels | 10 |
| Thermocouple | K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, J: -210 ... +1200°C, R: -50 ... +1765°C, S: -50 ... +1765°C |
Connectors |

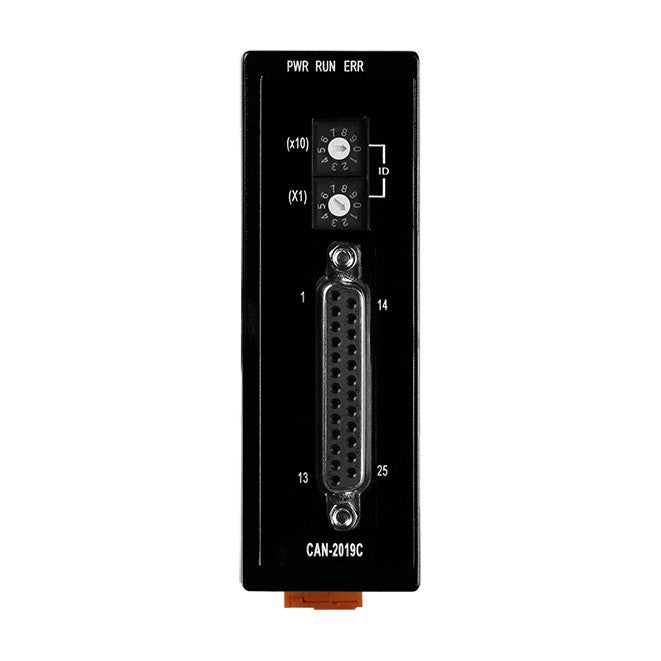

| Connectors | DB25 |
Additional Functions |
| Watchdog timer type | Hardware |
System Power Input |
| Input Voltage DC | 10...30 V |
Dimensions and weight |
| Width | 33 mm |
| Depth | 99 mm |
| Height | 78 mm |
Operating Conditions |
| Operating Temperature | -25...75 °C |
