Specification
Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Industrial Interfaces | |

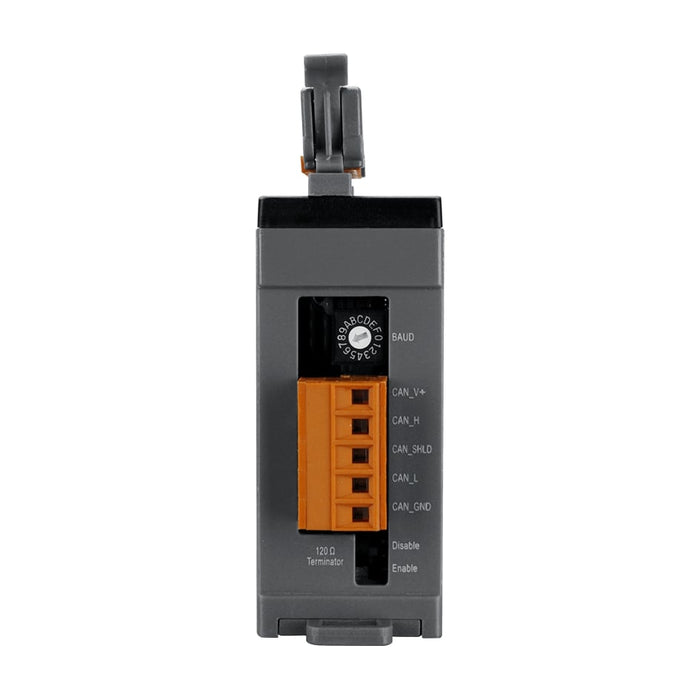

| CAN Port | 1 |
Supported Protocols | |
| Industrial Protocols | CANopen slave |
Digital Input | |
| Number of channels | 8 |
| Signal Type | Pulse/Dir, AB Phase, Quadrant, Frequency, Up, Up/Down, Bi-direction |
| Max frequency | 250 kHz |
System Power Input | |
| Input Voltage DC | 10...30 V |
Dimensions and weight | |
| Width | 33 mm |
| Depth | 78 mm |
| Height | 99 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
