Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | DIN-Rail mount |
Industrial Interfaces | |
| CAN Port | 1 |
Supported Protocols | |
| Industrial Protocols | DeviceNET slave |
Digital Input | |
| Total channels of digital input | 8 |
| Type | Wet contact |
| Level of Logic "0" | 0~3.5 V |
| Level of Logic "1" | 5.5~30 V |
| Sink/Source | Sink, Source |
| Isolation of Digital Input | 2500 V |
| Number of channels | 8 |
| Signal Type | Wet: Sink |
| Counter capacity | 32 Bit |
| Max frequency | 500 kHz |
Digital Output | |
| Channels | 8 |
| Signal Type | PWM: Source |
| Output frequency range | 0.0002~500 kHz |
| Output Voltage | 5 V |

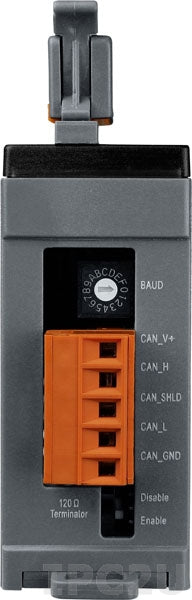

Connectors | |
| Connectors | Screw Terminal |
Additional Functions | |
| Watchdog timer type | Hardware |
System Power Input | |
| Input Voltage DC | 10...30 V |
Dimensions and weight | |
| Width | 33 mm |
| Depth | 102 mm |
| Height | 107 mm |
Operating Conditions | |
| Operating Temperature | -25...75 °C |
