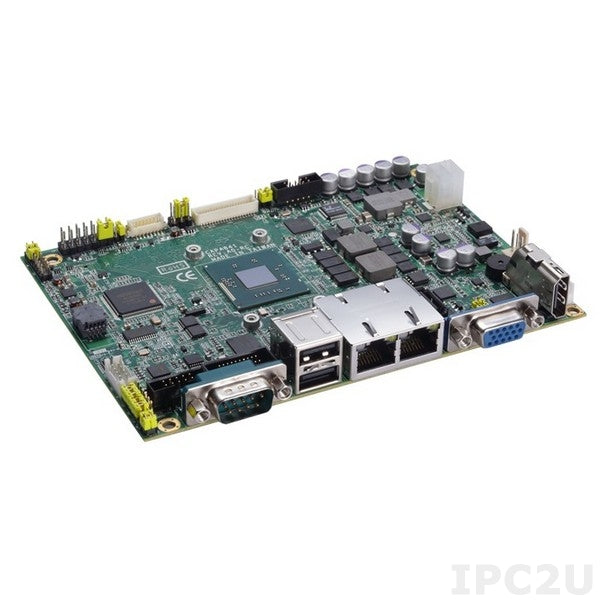

System Architecture | |
| Form Factor | 3.5" |
Construction | |
| Type | Fanless |
CPU | |
| СPU Generation/Family | Bay Trail |
| Processor Installed | Intel Atom E3827 |
| Max CPU frequency | 1.75 GHz |
Chipset | |
| Chipset | Intel Bay Trail-I SoC |
Memory | |
| Form-factor | DDR3L |
| Socket Type | 1xSODIMM |
| Maximum Memory | 8 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | LVDS, HDMI, VGA |
Ethernet | |
| Controller Type | Intel i210-IT |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-232/422/485 | 2 |
| USB Total | 4 |
| USB 2.0 | 4 |
Digital Input-Output | |
| Channels of DIO | 8 |
Audio | |
| Audio Controller | Intel HD Audio |
Drive interfaces | |
| CFast Slots | 1 |
Extension Slots | |
| Total | 2 |
| SIM Card slots | Yes, 1 |
| Mini-PCIe/Mini Card | 2 |
Additional Functions | |
| Watchdog timer type | Software |
Connectors | |
| Internal Ports | SATA 2, 10-pin DIO, 10-pin USB 2.0, 4-pin Power, 10-pin Audio, 10-pin RS-232/422/485, 3-pin SMBus, 40-pin LVDS, 20-pin 2xRS-232 |
| Connectors | DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 2xUSB |
Software | |
| Operating System Compatibility | Windows 7, Windows 8, Windows 10 |
Dimensions and weight | |
| Width | 104 mm |
| Length | 146 mm |
Operating Conditions | |
| Operating Temperature | -40...75 °C |
