System Architecture | |

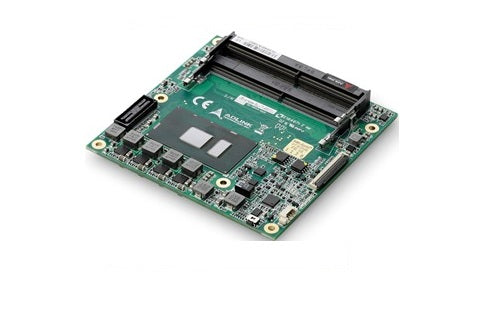

| Form Factor | COM Express CPU Module |
CPU | |
| СPU Generation/Family | Skylake |
| Processor Installed | Intel Core i5-6300U |
| Max CPU frequency | 3.2 GHz |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM |
| Maximum Memory | 32 GB |
| Assembly | Removable |
Graphic | |
| Interfaces | LVDS, eDP |
Ethernet | |
| 10/100/1000 Mbit/s | 1 |
Interfaces | |
| USB Total | 8 |
| USB 2.0 | 4 |
| USB v3.x | 4 |
Audio | |
| Audio Controller | Intel HD Audio |
Software | |
| Operating System Compatibility | Windows 7, Windows 10, Linux OS |
Dimensions and weight | |
| Width | 95 mm |
| Length | 95 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 0-95% |
