Construction | |
| Construction Chassis | Aluminium Chassis |
| Mounting Configuration | Built-in, Panel |
| Protection Level of Chassis | IP65 |
| Type | Convection |
CPU | |
| СPU Generation/Family | Coffee Lake, Coffee Lake Refresh |
| Processor Installed | Intel Core i5-9500TE |
| Socket | LGA1151 |
| CPU Support Type | Core i3, Core i5, Core i7, Xeon |
| Max CPU frequency | 2.2 GHz |
Chipset | |
| Chipset | Intel C246 |
Memory | |
| Form-factor | DDR4 |
| Socket Type | 2xSODIMM 260-pin |
| ECC | No |
| Maximum Memory | 64 GB |
| Assembly | Removable |
Graphic | |
| Graphic Controller | Integrated in CPU |
| Interfaces | DVI-D |
Ethernet | |
| Controller Type | Intel i210-AT, Intel i219-LM |
| Total Ethernet | 2 |
| 10/100/1000 Mbit/s | 2 |
Interfaces | |
| COM Total | 1 |
| RS-232/422/485 | 1 |
| USB Total | 4 |
| USB 2.0 | 2 |
| USB v3.x | 2 |
Drive interfaces | |
| SATA 3 | 2 |
Storage Cage | |
| Number Of Cage External | 2 |
| 2.5" Cage External | 2 |
Extension Slots | |
| Total | 2 |
| PCI Express x8 | 1 |
| Mini-PCI | 1 |
Connectors | |

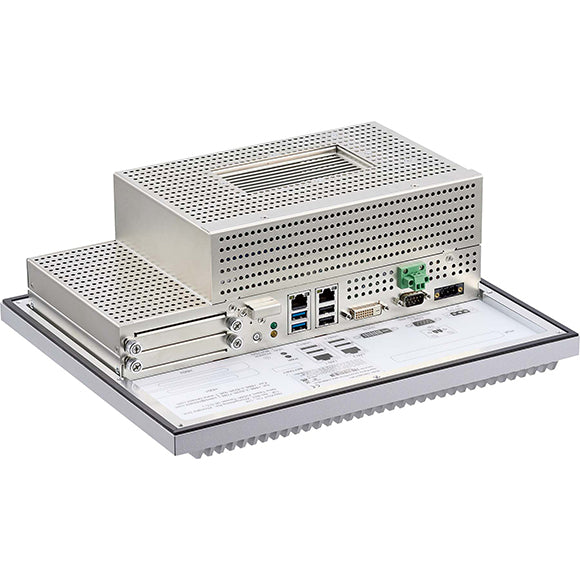

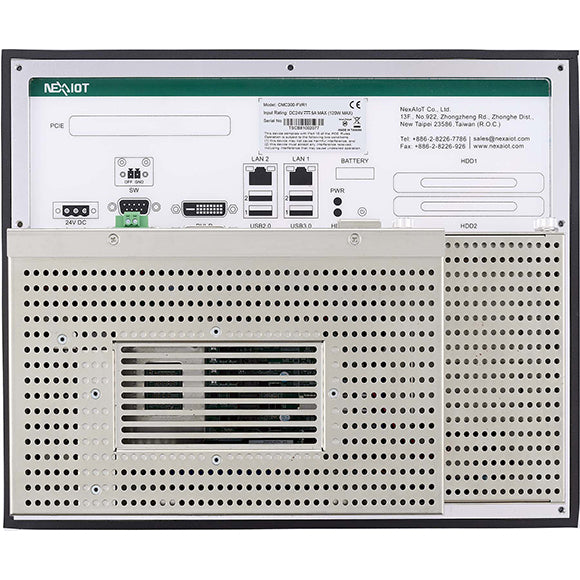

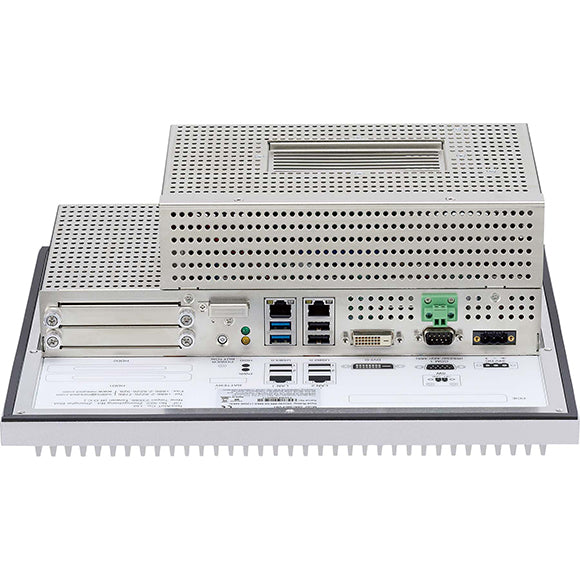

| Connectors | DB9, DVI-D, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block) |
System Power Input | |
| Input Voltage DC | 18...24 V |
Power Supply | |
| Supported Types of Power Supply | External power adapter AC/DC |
Software | |
| Operating System Compatibility | Windows 10 |
Dimensions and weight | |
| Width | 330 mm |
| Height | 275 mm |
| Depth | 116.2 mm |
Operating Conditions | |
| Operating Temperature | 0...60 °C |
| Humidity | 10-90% |
| Vibration | Random: 0.5Grms @ 5~500 Hz. IEC60068-2-64; Sinusoidal: 0.5Grms @ 5~500 Hz. IEC60068-2-64 |
Standards and Certifications | |
| Certifications | CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A |
| Vibration And Shock | IEC 60068-2-64 |
