Construction | |
| Construction Chassis | Plastic Chassis |
| Mounting Configuration | Built-in |
| Protection Level of Chassis | IP65 |

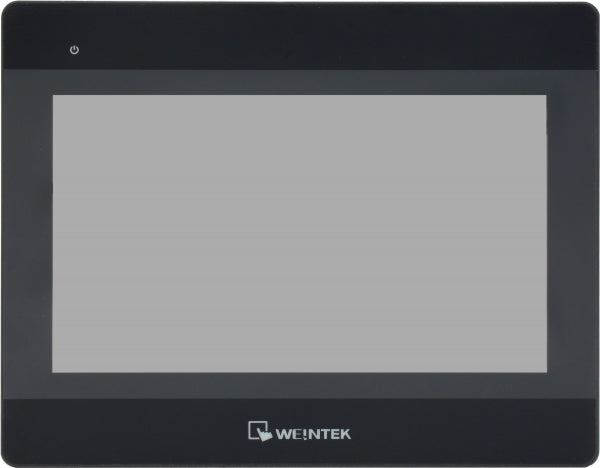

Display | |
| Display Type | LCD TFT |
| Diagonal | 10.1 " |
| Maximum resolution | 1024x600 Dots |
| Brightness | 350 Cd/m2 |
| Contrast Ratio | 500~1 |
Touch Screen | |
| Touch Screen Type | Resistive |
Memory | |
| Default on Board Memory | 1 GB |
Installed drive | |
| Flash Memory Capacity | 4 MB |
Ethernet | |
| Total Ethernet | 1 |
| 10/100 Mbit/s | 1 |

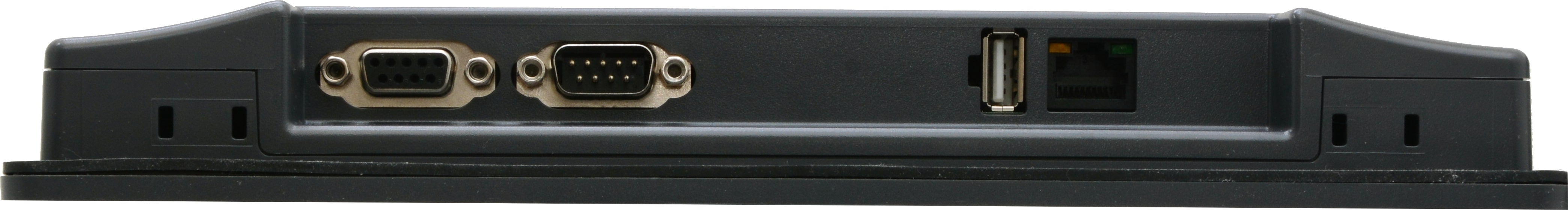

Interfaces | |
| COM Total | 4 |
| RS-232 | 2 |
| RS-485 | 2 |
Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n |
Supported Protocols | |
| Industrial Protocols | CANopen, CAN |
Software | |
| Development Software | EasyBuilder Pro |
System Power Input | |
| Input Voltage DC | 10.5...28 V |
Dimensions and weight | |
| Width | 271 mm |
| Depth | 36.5 mm |
| Height | 213 mm |
Operating Conditions | |
| Operating Temperature | 0...50 °C |
Standards and Certifications | |
| Safety | UL/cUL |
