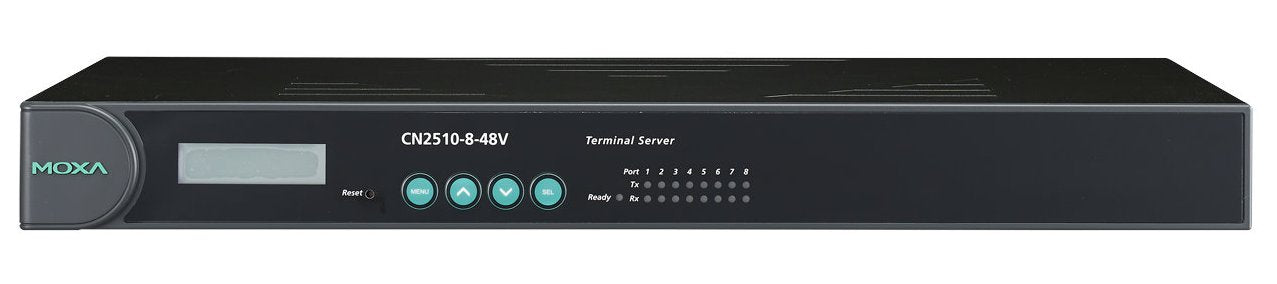

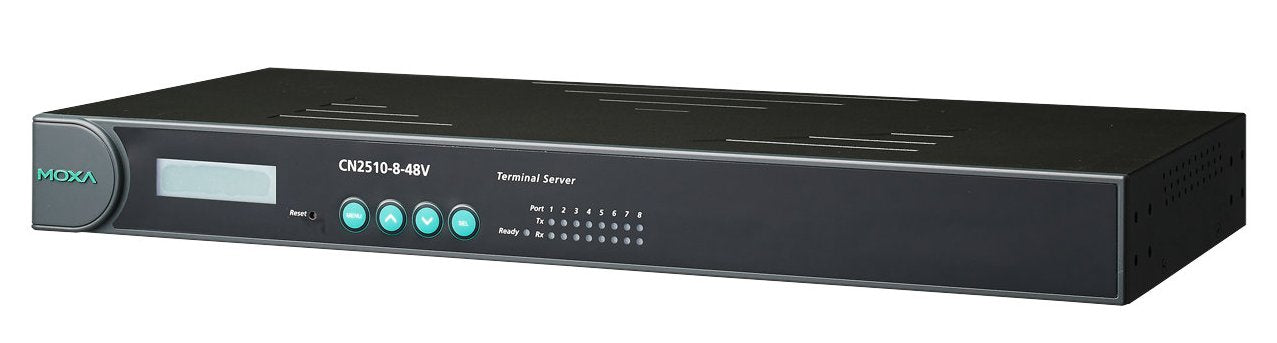

CN2510-8-48V V2

Ціна за запитом
8-Port RS-232 Acync Server, Single 10/100Mbit Ethernet, +/-48VDC Power Input

Ethernet

Total Ethernet 1
10/100 Mbit/s 1
Type 10/100 Mbit/s 1xRJ-45

Interfaces

COM Total 8
RS-232 8
Isolation of COM Ports 15 kV (RS-232)

Supported Protocols

Managment Protocols TCP, UDP, DHCP, SNMP
Security Protocols CHAP, RADIUS, ICMP

LED / Controls

LED LED Bar, 10/100M LED, TX LED, RX LED
Setup of Operation Mode Telnet, Console Port, Buttons for Setting up and Displaying Status, Web-interface
Controls On/Off, 1xReset, KeyPad

Connectors

Connectors Console Port RS-232 (RJ-45)

Cables

Included Cables Yes

System Power Input

Input Voltage DC Min 38 V
Input Voltage DC Max 72 V

Operating Conditions

Operating Temperature Min 0 °C
Operating Temperature Max 55 °C

Construction

Construction Chassis Metal Chassis
Mounting Configuration 19" Rackmount

Dimensions and weight

Width 440 mm
Depth 45 mm
Height 198 mm

Standards and Certifications

Safety EN 60950, UL 60950-1
