Ціна за запитом

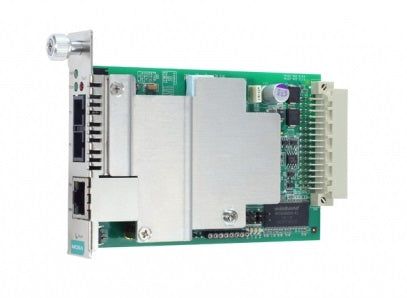

10/100BaseT(X) to 100BaseFX slide-in managed module converter, WDM-B single-mode SC connector, -20 to 55C


Total Ethernet 2
10/100 Mbit/s 2
Type 10/100 Mbit/s SC, RJ-45, WDM


Type of Fibre Optic single-mode

Supported Protocols

IEEE Standard IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ah OAM for Link-Fault Management

Switch Properties

Supported functions Link Fault Pass-Through (LFP), Far End Fault (FEF)

LED / Controls

LED Power LED, 10/100M LED
Setup of Operation Mode By Switches

System Power Input

Input Voltage DC Min 12 V
Input Voltage DC Max 12 V

Operating Conditions

Operating Temperature Min -20 °C
Operating Temperature Max 55 °C


Construction Chassis Open Frame
Mounting Configuration Built-in

Dimensions and weight

Width 86.8 mm
Depth 21 mm
Height 124.3 mm

Standards and Certifications

Certifications CE, FCC
Freefall IEC 60068-2-32
Safety UL 60950-1
