D-3330-SS

Name: D-3330-SS
Brand: ICOP
SKU: 06518200
Availability: InStock

ICOP

Ціна за запитом

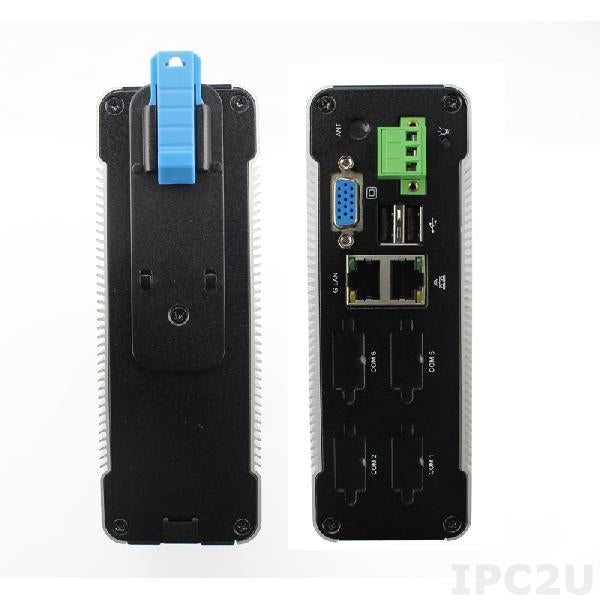

DIN rail mountable Embedded PC, Vortex86DX2 933MHz CPU, 1GB DDR2 RAM, LAN, GbE LAN, 2xUSB, SATA, SD slot, 8..24V DC, operating temp. 5..50 C

Специфікація

Specification

Construction
Mounting Configuration	DIN-Rail mount
Type	Fanless
CPU
Processor Installed	Vortex86DX2
Max CPU frequency	0.93 GHz
Memory
Form-factor	DDR2
Default on Board Memory	1 GB
Graphic
Graphic Controller	Integrated in Chipset
Ethernet
10/100/1000 Mbit/s	1
10/100 Mbit/s	1
Interfaces
USB 2.0	3
Drive interfaces
SD Slots	1
Connectors
Connectors	DB15 VGA, 2xRJ45, 2xUSB
System Power Input
Input Voltage DC	8...15 V
Software
Operating System Compatibility	Windows XP, Windows XP Embedded, Windows 7, Linux OS
Dimensions and weight
Width	152 mm
Height	104 mm
Depth	54 mm
Operating Conditions
Operating Temperature	5...50 °C
Standards and Certifications
Certifications	CE, FCC, VCCI
