DB-24PRD/24/DIN

Name: DB-24PRD/24/DIN
Brand: ICP DAS
SKU: 01083000
Availability: InStock

ICP DAS

Ціна за запитом

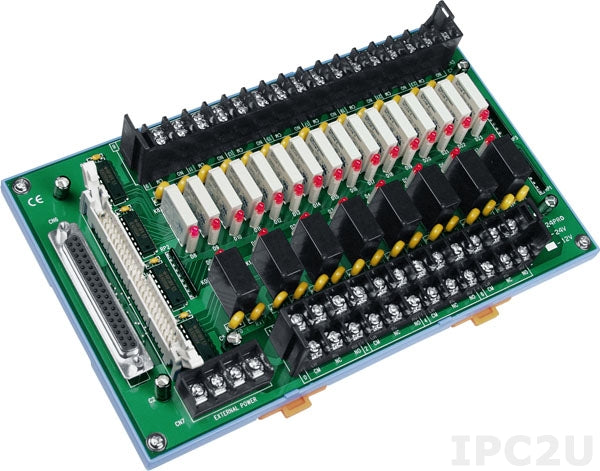

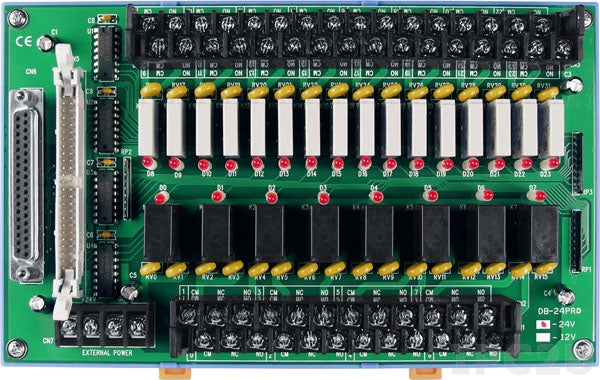

24 Channels Power Relay (24V) Daughter Board, Opto-22 Compatible, DB37 Connector, DIN-Rail Mounting

Специфікація

Specification

Construction
Mounting Configuration	DIN-Rail mount
Digital Output
Total channels of digital output	24
Type	Electromagnitic relay
Relay (Form A)	16
Contact rating of relay (Form A)	5A@250V AC, 5A@30V DC
Relay (Form C)	8
Contact rating of relay (Form C)	5A@250V AC, 5A@30V DC
Dimensions and weight
Width	220 mm
Height	132 mm
Operating Conditions
Operating Temperature	0...60 °C
