DC1M-08GD71AC2QB

DC1M-08GD71AC2QB

InnoDisk
Ціна за запитом

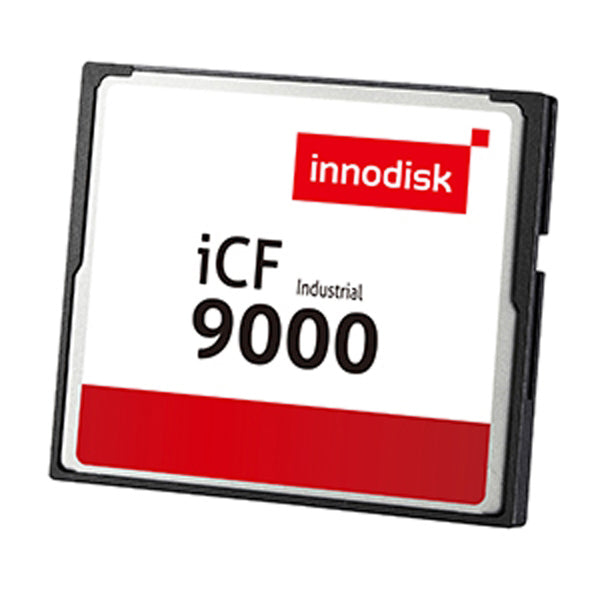

8GB Industrial CompactFlash Card, Innodisk iCF 9000, Dual Channel, Standard Temperature 0..+70 C

Specification

Flash Disk

TypeCompact Flash
Connector / Socket50-pin CompactFlash
ConstructionBuild in Chassis
InterfacePATA
Type flash memorySLC
Capacity8 GB
Transfer Rate Maximum Read110 MB/s
Transfer Rate Maximum Write70 MB/s

System Power Input

Input Voltage DC5...5 V

Operating Conditions

Operating Temperature0...70 °C
Humidity10-95%
Vibration7 Hz to 2 kHz. 20G. 3 axes (IEC 68-2-6)
ShockDuration: 0.5ms. 1500G. 3 axes (IEC 68-2-27)
MTBF3000000 h

Files

Documentation

📄 Datasheet_Innodisk_iCF9000
