DEMSM-32GDK1EC1SF

DEMSM-32GDK1EC1SF

InnoDisk
Ціна за запитом
32GB Innodisk mSATA mini 3TE7E, SATA 3, 3D TLC, R/W 180/35 MB/s, Standard Temperature 0..+70 C

Specification

Flash Disk

Typemini-mSATA
Connector / Socket52-pin Mini PCI-E
ConstructionOpen Frame
InterfaceSATA 3
Type flash memory3D TLC
Capacity32 GB
Transfer Rate Maximum Read180 MB/s
Transfer Rate Maximum Write35 MB/s

System Power Input

Input Voltage DC3.3...3.3 V
Current0.2 mA

Operating Conditions

Operating Temperature0...70 °C
Humidity10-95%
Vibration20G@7~2000Hz
Shock1500G@0.5ms
MTBF3000000 h

Files

Documentation

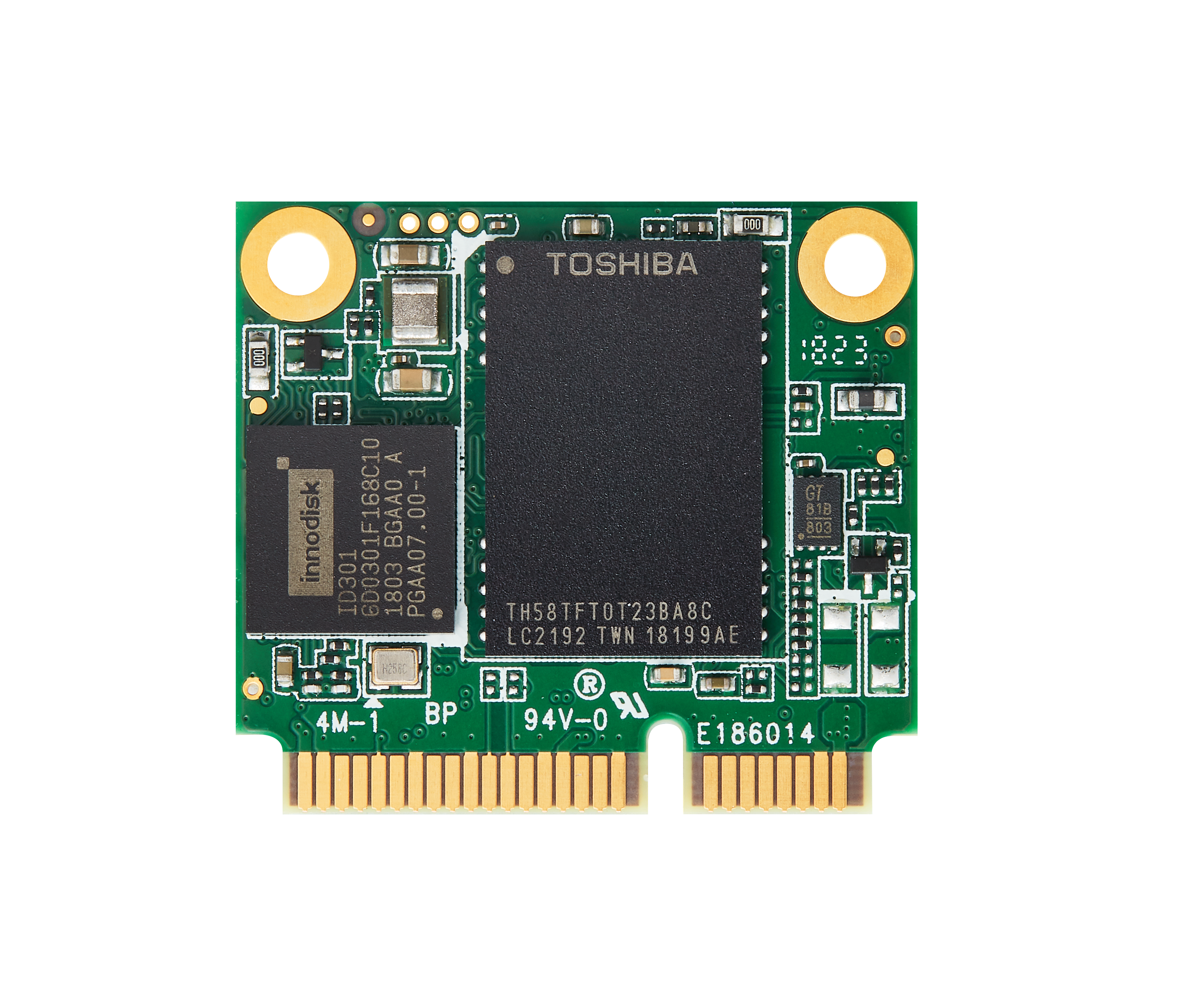

📄 mSATA mini_3TE7_BGA_Front.png
