DEMSR-08GM41BW1SC

DEMSR-08GM41BW1SC

InnoDisk
Ціна за запитом

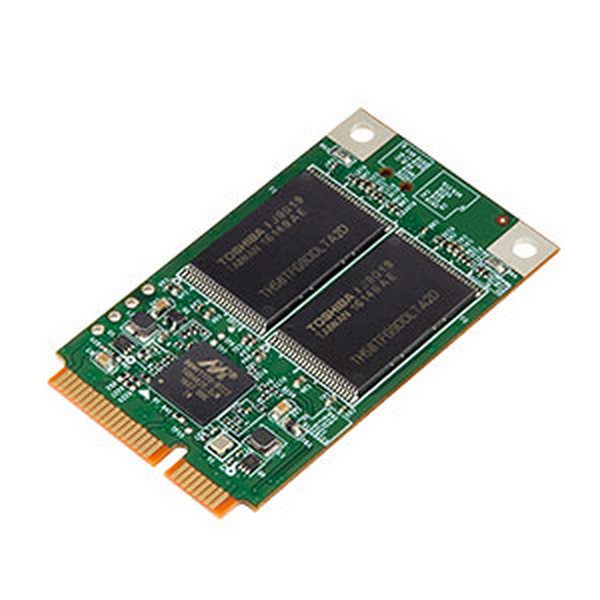

8GB Innodisk mSATA 3ME4, SATA3, mSATA Interface, MLC, read/write 140/25 Mb/s, Standard Temperature -40...+85C

Specification

Flash Disk

TypemSATA
Connector / Socket52-pin Mini PCI-E
ConstructionOpen Frame
InterfaceSATA 3
Type flash memoryMLC
Capacity8 GB
Transfer Rate Maximum Read140 MB/s
Transfer Rate Maximum Write25 MB/s

System Power Input

Input Voltage DC3.3...3.3 V
Current0.2 mA

Operating Conditions

Operating Temperature-40...85 °C
Humidity10-95%
Vibration20G@7~2000Hz
Shock1500G@0.5ms
MTBF3000000 h

Files

Documentation

📄 Datasheet mSATA 3ME4
