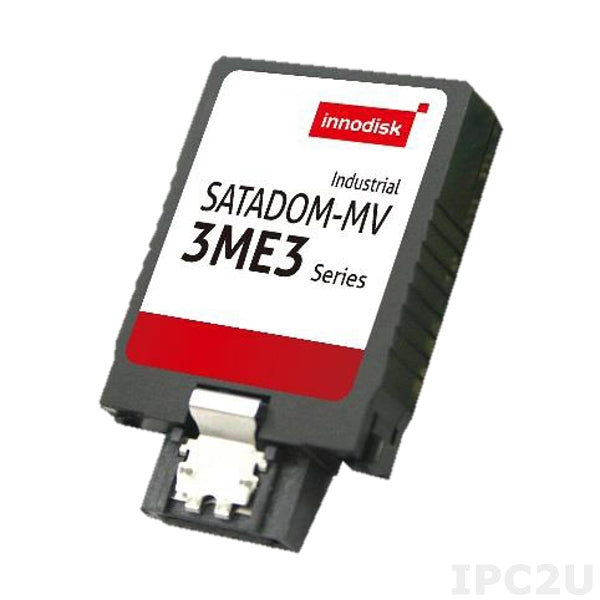

DESMV-32GD09BW1DC

DESMV-32GD09BW1DC

InnoDisk
Ціна за запитом
32GB Innodisk SATA III SATADOM-MV 3ME3, MLC, 2 channels, R/W 200/40 MB/s, power supply 7pin or cable, temperature -40C..+85C

Specification

Flash Disk

TypeDisk On Module
Connector / Socket7-pin SATA
PositioningVertical
InterfaceSATA 3
Type flash memoryMLC
Capacity32 GB
Transfer Rate Maximum Read200 MB/s
Transfer Rate Maximum Write40 MB/s

System Power Input

Input Voltage DC5...5 V
Current370 mA

Operating Conditions

Operating Temperature-40...85 °C
Humidity10-95%
Vibration7 Hz to 2K Hz. 20G
ShockDuration: 0.5ms. 1500 G
MTBF3000000 h

Files

Documentation

📄 Datasheet SATADOM-MV 3ME3
