DGMSR-64GD81BC1QC

DGMSR-64GD81BC1QC

InnoDisk
Ціна за запитом

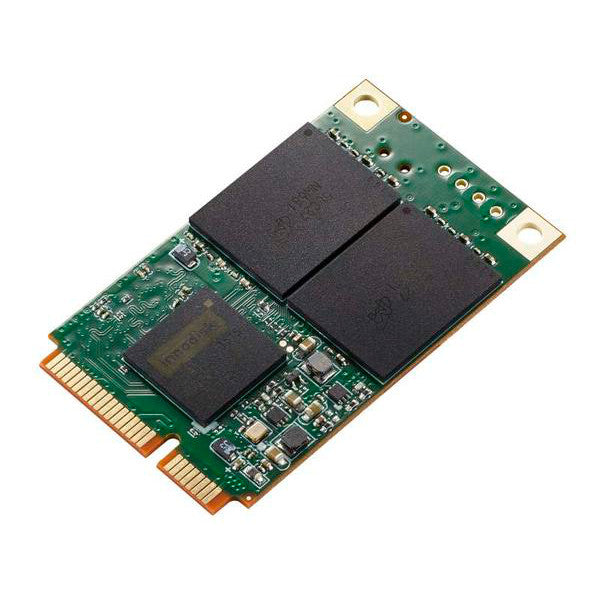

64GB Innodisk mSATA Full-Size 3MG2-P, SATA 3, MLC, Toshiba Chip 15nm, R/W 520 / 90 MB/s, Standard Temperature 0..+70 C

Specification

Flash Disk

TypemSATA
Connector / Socket52-pin Mini PCI-E
ConstructionOpen Frame
InterfaceSATA 3
Type flash memoryMLC
Capacity64 GB
Transfer Rate Maximum Read520 MB/s
Transfer Rate Maximum Write90 MB/s

System Power Input

Input Voltage DC3.3...3.3 V
Current0.2 mA

Operating Conditions

Operating Temperature0...70 °C
Humidity10-95%
Vibration20G@7~2000Hz
Shock1500G@0.5ms
MTBF3000000 h

Files

Documentation

📄 Datasheet mSATA 3TG6-P
