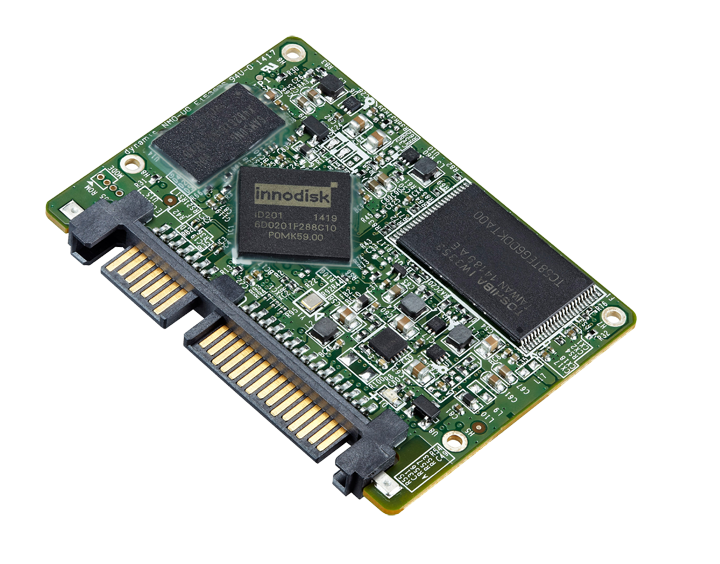

DGSLM-64GD81BW1QC

DGSLM-64GD81BW1QC

InnoDisk
Ціна за запитом
64GB SATA Slim 3MG2-P Flash Card w/Kioxia, MLC flash, 4 channels, 520 MB/s (read), 90 MB/s (write), Industrial Grade, -40...+85C

Specification

Flash Disk

TypeSATA Slim
Connector / Socket15+7-pin SATA
ConstructionOpen Frame
InterfaceSATA 3
Type flash memoryMLC
Capacity64 GB
Transfer Rate Maximum Read520 MB/s
Transfer Rate Maximum Write90 MB/s

System Power Input

Input Voltage DC5...5 V
Current520 mA

Operating Conditions

Operating Temperature-40...85 °C
Humidity10-95%
Vibration20G@7~2000Hz
Shock1500G@0.5ms
MTBF3000000 h

Files

Documentation

📄 Innodisk_SATA_Slim_3MG2-P_Datasheet.pdf
