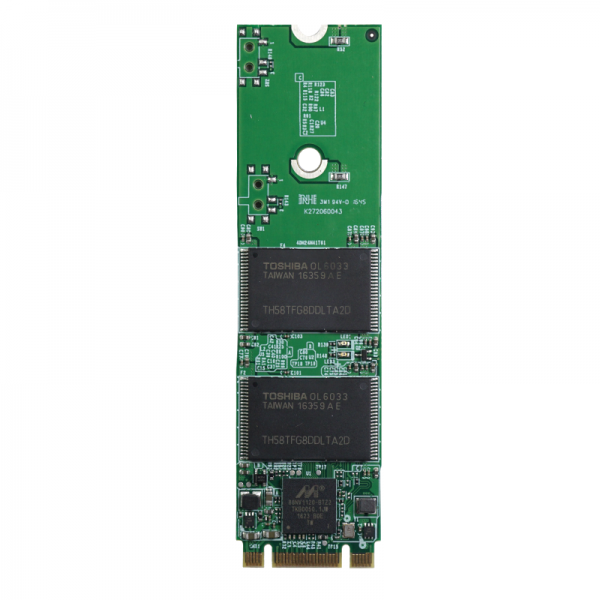

DHM28-32GM41BW1DC

DHM28-32GM41BW1DC

InnoDisk
Ціна за запитом
32GB Innodisk 3IE4, SATA3, M.2 (S80) Interface, iSLC, read/write 530/300 Mb/s, Wide Temperature -40...+85C

Specification

Flash Disk

TypeM.2 2280
Connector / SocketKey B+M
ConstructionOpen Frame
InterfaceSATA 3
Type flash memoryMLC
Capacity32 GB
Transfer Rate Maximum Read530 MB/s
Transfer Rate Maximum Write300 MB/s

System Power Input

Input Voltage DC3.3...3.3 V
Current370 mA

Operating Conditions

Operating Temperature-40...85 °C
Humidity10-95%
Vibration20G@7~2000Hz
Shock1500G@0.5ms
MTBF3000000 h

Files

Documentation

📄 M.2_(S80)_3IE4
